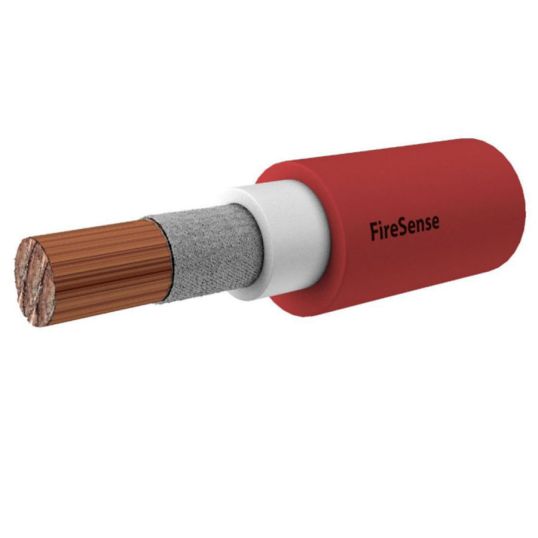

FireSense 70 mm Fire Rated Cable X-HF-110/HFS-110-TP Red 1mtr

chevron-left
loader
Loading...

Description

chevron-down
Fire Rated Cable, 70 mm, Class 6 Stranded Annealed Copper, 0.6-1 kV, 1 Core, 20 mm Overall Diameter, 1 mtr Length, 200 mm Bend Radius, DC: 0.272 Ohm/km Conductor Resistance, X-HF-110 Insulation, White Insulation, HFS-110-TP Sheath, Red Sheath, WS52W, -25 to 110 deg C, AS/NZS 3013 AS/NZS 5000.2 AS/CA S008 AS/NZS 1125 AS/NZS 3808

Key Specifications

chevron-down
SKU
FIRFR-70-1C
Brand
FireSense
Product Type
Fire Rated Cable

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • 2 hr fire rated
  • 110 deg C continuous operation
  • WS52W AS/NZS 3013 rating, AS/NZS 5000.1, AS/ACIF S008
  • RCM certified
  • Flame retardant
  • Flexible Class 6 conductors
  • Low smoke zero halogen (PVC Free) Third Party Accredited
  • ActivFire Certified
Standard Pack Size 1
UNSPSC Class 26121600
UOM MTR
Vendor Product FR-70-1C
AS3013 Rating WS52W
Bend Radius 200 mm
Conductor Resistance 0.272 Ohm/km
Conductor Size 70 mm
Conductor Type Class 6 Stranded Annealed Copper
Insulation Colour White
Insulation Material X-HF-110
Number of Cores 1 Core
Overall Diameter 20 mm
Sheath Colour Red
Sheath Material HFS-110-TP
Standards AS/NZS 3013 AS/NZS 5000.2 AS/CA S008 AS/NZS 1125 AS/NZS 3808
Temperature -25 to 110 deg C
Voltage 0.6-1 kV
