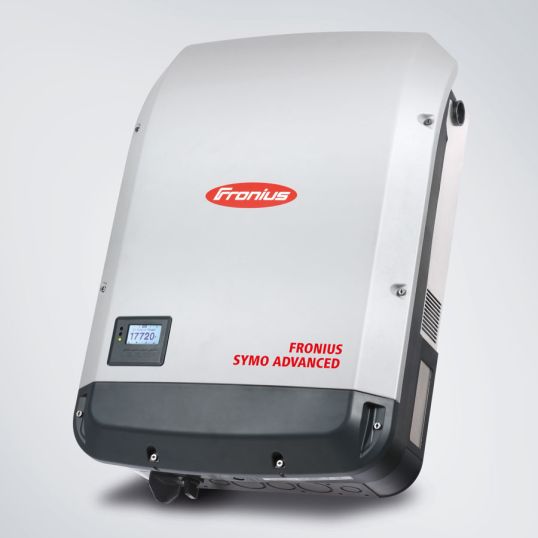

Fronius Grey Arc Guard technology Indoor and outdoor installation IP 66 2 MPPTs active cooling

$Fronius\Fronius_SYMO_Advanced.JPG$

Description

The Fronius Symo Advanced impresses not only with levels of performance and flexibility that have been proven a million times over, but also with its new equipment. The highlight in terms of safety is the integrated Fronius Arc Guard technology, which ensures the Fronius Symo Advanced exceeds the highest standards and is the future-proof and reliable choice for commercial photovoltaic systems of any size.

Key Specifications

SKU	FRNSYMOADV10.0-3-M
Brand	Fronius
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	More safety included Endless freedom Optimal performance as standard
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SYMOADV10.0-3-M
AC Max. Apparent Power	10 kVA
AC Nominal Voltage	150-280 Volt
AC Operating Frequency	50/60 Hz
AC Output Power	10 kW
AC Output Current	14.4 Amp
Communication Port	Wi-Fi / Ethernet LAN / USB / 2 x RS422 / RS485
Connection Type	DC: 6 x DC+ and 6 x DC-Screw Terminals 2.5-16 sq-mm / AC: 5-pin AC Screw Terminals 2.5-16 sq-mm
Cooling Method	Active Cooling Technology
DC Input Power	15 kW
DC Input Voltage	200-1000 Volt
DC MPPT Voltage Range	270-800 Volt
DC Nominal Voltage	600 Volt
DC Start-up Voltage	200 Volt
Depth	225 mm
Efficiency	97.80%
Height	725 mm
IP Rating	IP66
European Weighted Efficiency	95.5 / 97.1 / 96.3%
Max. Operating Altitude	3400 mtr
MPPT Efficiency	99%
Number of MPPTs	2
Operating Temperature	-25 to 60 deg C
Phase	3 Phase
Power Factor	0-1 Inductive/Capacitive
Relative Humidity	0-100% No Condensation
Topology	Transformerless
Total Harmonic Distortion	<1.75%
Width	510 mm
