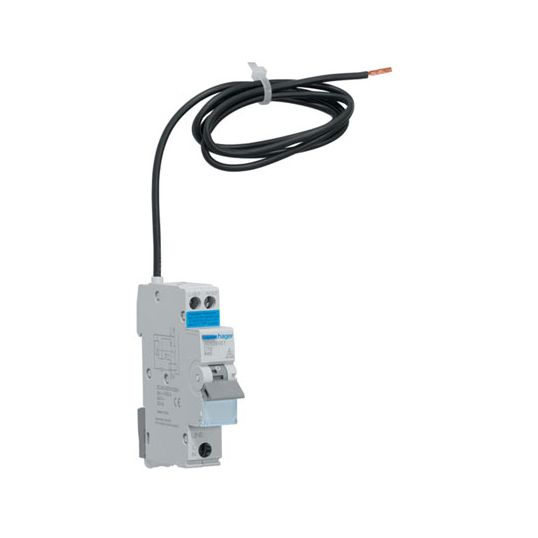

Hager Residual Current Breaker with Overcurrent Protection (RCBO) 16Amp 6kA 30mA D Curve 1 + N Pole 1 Module

Description

Compact combination devices which provide overcurrent protection and earth leakage protection. The Type A devices, with a switched neutral, are available in various current ratings from 6A - 40A. A 1 module RCBO is specifically designed for DIN rail enclosures but can also be used in Invicta panel boards. It is supplied with a 1 mtr long neutral-in fly lead.

Key Specifications

Barcode (EAN-13)	3250611033424
SKU	HAGADD916T
Brand	Hager

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Earth fault indication window ACC9xxT is Type 1 to comply with AS/NZS 3190 requirements Trip free mechanisms
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	ADD916T
Current	16 Amp
Connection Type	Screw
Depth	70 mm
Height	85 mm
Frequency	50/60 Hz
IP Rating	IP20
Interrupt Capacity	6 kA
Modules	1 Module
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Temperature	25 to 70 deg C
Trip Characteristic	D Curve
Voltage	440 Volt
Trip Sensitivity	30 mA
Width	17.8 mm
