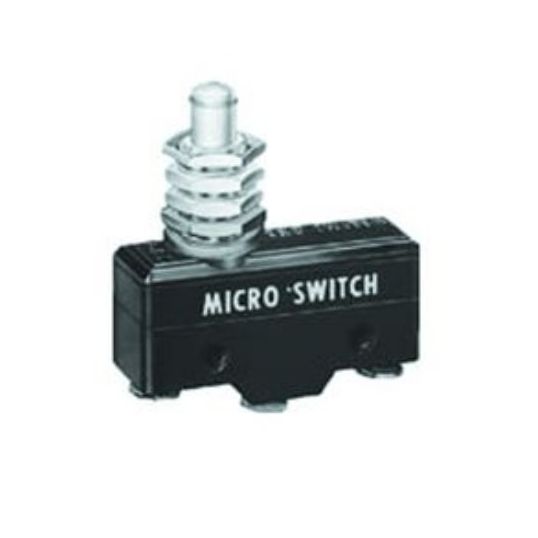

Honeywell Microswitch 15A SPDT High Overtravel Plunger
Loading...
Description
Microswitch, 125-250 Volt AC, 125-250 Volt DC, 15 Amp, 50/60 Hz, High Overtravel Plunger Actuator, SPDT, Chassis Mount, 20000000 Mechanical Cycles, -55 to 85 deg C, 24.1 mm Height, 17.5 mm Width, 49.3 mm Depth
Key Specifications
| SKU |
HONBZ-2RN770
|
|---|---|
| Brand |
Honeywell
|
| Product Type |
Microswitches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | BZ-2RN770 |
| Actuator Type | High Overtravel Plunger |
| Contact Configuration | SPDT |
| Depth | 49.3 mm |
| Current | 15 Amp |
| Frequency | 50/60 Hz |
| Mounting Method | Chassis |
| Height | 24.1 mm |
| Operating Cycles | 20000000 Mechanical Cycles |
| Temperature | -55 to 85 deg C |
| Voltage | 125-250 Volt AC/DC |
| Width | 17.5 mm |
