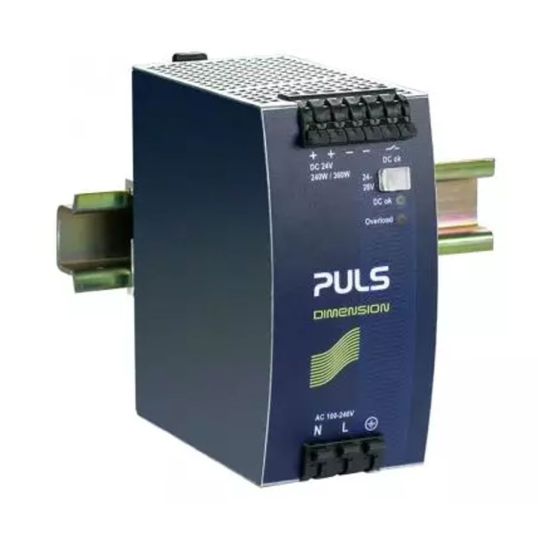

Puls DC Power Supply 100-240VAC 110-150VDC Input 24-28VDC Output 10-9A 240W DIN Rail Mount

$Puls\Puls_QS10.241.jpg$

Description

DC Power Supply, 100-240 Volt AC, 110-150 Volt DC Input Voltage, 24-28 Volt DC Output Voltage, 10-9 Amp, 240 Watt Output, 1 PH Phase, 0.92 Power Factor, Spring Clamp Connection, DIN Rail Mounting, 93.5% Efficiency,-25 to 70 deg C, 124mm Height, 60mm Width, 117mm Depth

Key Specifications

SKU	IPDQS10.241
Brand	Puls
Product Type	Power Supplies

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	100-240 Volt Wide-range input, active PFC Efficiency up to 93,5%, SEMI-F47-200 approved Negligibly low input inrush current 50% Power reserves available up to 4 sec Full output power between-25 and +60 deg C Spring-clamp terminals, DC-OK contact
Standard Pack Size	1
UNSPSC Class	39121000
UOM	EA
Vendor Product	QS10.241
Connection Type	Spring Clamp
Current	10-9 Amp
Depth	117mm
Efficiency	93.50%
Height	124mm
Input Voltage	100-240 Volt AC/110-150 Volt DC
Mounting Method	DIN Rail
Phase	1 Phase
Output Voltage	24-28 Volt DC
Output Rating	240 Watt
Temperature	-25 to 70 deg C
Power Factor	0.92
Width	60mm
