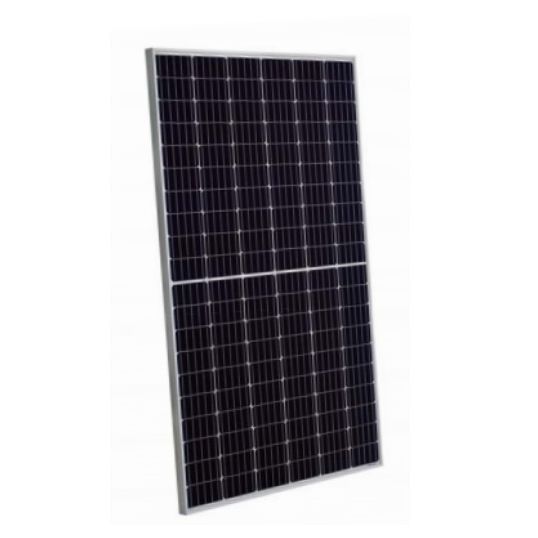

Jinko Solar Eagle HC Solar Panel Half Cell 310W Mono-Crystalline 60 Cells

Name: Solar Panel Half Cell 310W Mono 60 Cells
SKU: JKM310M-60H
Availability: InStock

$Jinko_Solar\JinkoSolar_JKM310M-60H.jpg$

Description

Solar Panel, Monocrystalline Cell Type, 60 Number of Cells, 310 Watt Max. Power, 33 Volt Max. Voltage, 9.4 Amp Max. Current, 40.5 Volt Open Circuit Voltage, 10.15 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC (IEC) Max. System Voltage, 18.77% Module Efficiency, 0 - 3% Power Tolerance, JK03M; Jinko PV Material Connector, (+) 290 mm, (-) 145 mm or Customized Length Output Cables, IP67 Junction Box, Anodize Aluminium Alloy Frame Construction, 3.2 mm, High Transmission, Tempered Glass with Anti-Reflection Front Glass, 0.36%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1665 mm ? 992 mm ? 35 mm Dimensions, 19 kg Weight, ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730 Certifications

Key Specifications

SKU	JKM310M-60H
Brand	Jinko Solar
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	5 busbar solar cell High efficiency PID resistant Low-light performance Severe weather resilience Durability against extreme environmental conditions
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	JKM310M-60H
Cell Type	Monocrystalline
Connector Type	JK03M; Jinko PV Material
Frame Construction	Anodized Aluminium
Front Glass	3.2 mm/High Transmission/Tempered Glass with Anti-Reflection
Certifications	ISO9001 2008; ISO14001 2004; OHSAS18001; IEC61215; IEC61730
Item Weight	19 kg
Junction Box	IP67
Max. System Voltage	1000 Volt DC (IEC)
Max. Fuse Current	20 Amp
Max. Current	9.4 Amp
Max. Voltage	33 Volt
Open Circuit Voltage	40.5 Volt
Number Of Cells	60
Operating Temperature	-40 to 85 deg C
Output Cables	(+) 290 mm/(-) 145 mm
Power Tolerance	0-3%
Short Circuit Current	10.15 Amp
Temperature Coefficient	0.36%/deg C
Wattage	310 Watt
