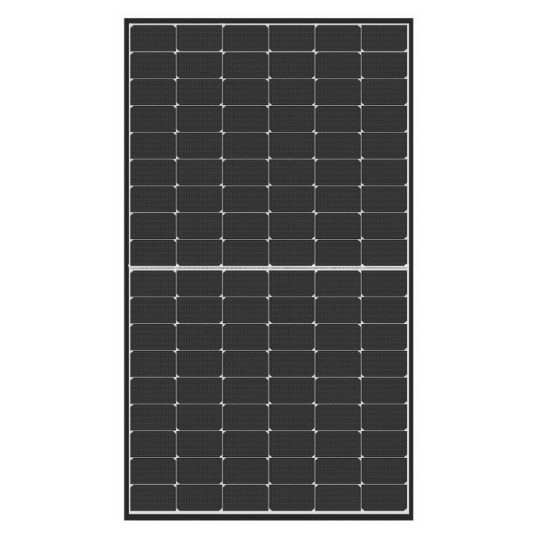

Jinko Solar Solar Panel 440W Monocrystalline 108 Cells 32.81V 13.41A Anodized Aluminum Alloy Black N-Type 39.38V 13.86A

Name: Solar Panel 440W Monocrystalline 108 Cells 32.81V 13.41A
SKU: JKM440N-54HL4R-V
Availability: InStock

$Jinko_Solar\JinkoSolar_JKM440N-54HL4R-V.JPG$

Description

Solar Panel, N-Type Model, Monocrystalline Cell, 108, 440 Watt, 32.81 Volt Maximum, 13.41 Amp Maximum, 39.38 Volt Open Circuit, 13.86 Amp Short Circuit, 25 Amp Max. Fuse, 1000/1500 Volt DC Max. System, 22.02% Efficiency, 0-3% Power Tolerance, 1 x 4 sq-mm, 400 mm Output Cables, IP68 Junction Box

Key Specifications

SKU	JKM440N-54HL4R-V
Brand	Jinko Solar
Range Name	Tiger Neo N Type
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	SMBB Technology-Better light trapping and current collection to improve module power output and reliability. Hot 2.0 Technology-The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID. PID Resistance- Excellent Anti-PID performance guarantee via optimized mass-production process and materials control. Enhanced Mechanical Load -Certified to withstand: wind load (4000 Pascal) and snow load (6000 Pascal). Durability Against Extreme Environmental Conditions-High salt mist and ammonia resistance
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	JKM440N-54HL4R-V
Cell Type	Monocrystalline
Certifications	IEC61215:2016 / IEC617302:016 / ISO9001:2015 / ISO14001:2015 / ISO45001:2018
Front Glass	3.2 mm Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Frame Construction	Anodized Aluminium Alloy Black
Efficiency	22.02%
Item Weight	22 kg
Height	30 mm
Junction Box	IP68
Max. Fuse Current	25 Amp
Max. System Voltage	1000/1500 Volt DC
Model	N-Type
Number Of Cells	108
Output Cables	1 x 4 sq-mm / 400 mm
Operating Temperature	-40 to 85 deg C
Power Tolerance	0-3%
Temperature Coefficient	-0.29%/ deg C
Warranty	15 Years Product / 30 Years Linear Power
Width	1134 mm
Wattage	440 Watt
