Std Pack Size
5
OUR P/N:
LAP53112675

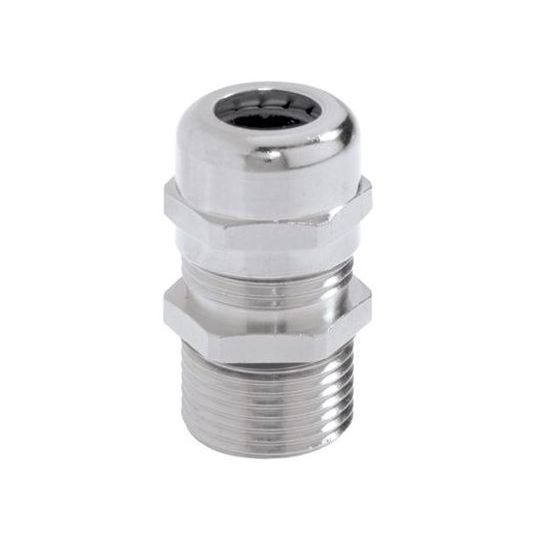

Cable Gland, EMC VSD Screened Cable, Extra Long Thread, M50 x 1.5, 15 mm Thread Length, 1.5 mm Pitch, 27 mm Min. Sheath OD, 35 mm Max. Sheath OD, IP68, CR Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed)
Additional Information
| Brand | Lapp Kabel |
|---|---|
| Range Name | Skintop MS-SC-M-XL |
| Standard Pack Size | 5 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 53112675 |
| Finish | Nickel Plated |
| Body Material | Brass |
| IP Rating | IP68 |
| Max. Sheath OD | 35mm |
| Product Type | Cable Glands EMC |
| Min. Sheath OD | 27mm |
| Thread Length | 15mm |
| Temperature | -25 to 100 deg C (Dynamic) -40 to 100 deg C (Fixed) |
| Seal Material | CR |
| Thread Pitch | 1.5mm |
| Thread Size | M50 x 1.5 |
