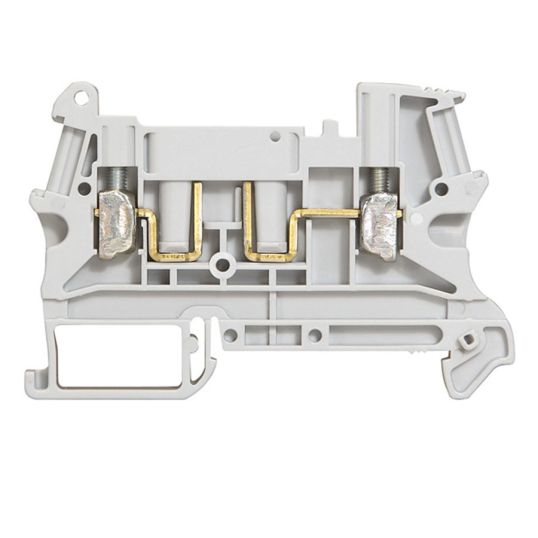

Legrand Viking 3 Disconnect Terminal Block 0.25-2.5mm Screw Connection Grey

$Legrand\Legrand_37180.JPG$

Description

Connecting Terminal Block, 0.25-2.5 mm, 2 Conductors, 500 Volt, 15 Amp, 2 Conductor Wiring Format, 1 Connection Points, 1 Level, Screw Terminal, DIN Rail Mounting, Thermoplastic Insulation, Grey, -5 to 40 deg C, UL94 V2 Flammability, 46.5 mm Height, 6 mm Width, 71.5 mm Depth

Key Specifications

SKU	LEG37180
Brand	Legrand
Range Name	Viking 3

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	37180
Colour	Grey
Conductor Size	0.25-2.5mm
Current Rating	15 Amp
Depth	71.5 mm
Height	46.5 mm
Flammability	UL94 V2
Insulation Material	Thermoplastic
Mounting Method	DIN Rail
Number of Conductors	2
Number of Connection Points	1
Number of Levels	1
Temperature	-5 to 40 deg C
Voltage Rating	500 Volt
Terminal Type	Screw
Width	6 mm
Wiring Format	2 Conductor
