Lifesaver Smoke Alarm Isolation Relay 240 VAC/30 VDC 5-10 VDC 68mm x 89mm x 45mm Up to 24 Device

Name: Smoke Alarm Isolation Relay 240VAC/30VDC 5-10VDC 68x89mm
SKU: LIFSAIR
Availability: InStock

$Lifesaver\Lifesaver_LIFSAIR.jpg$

Description

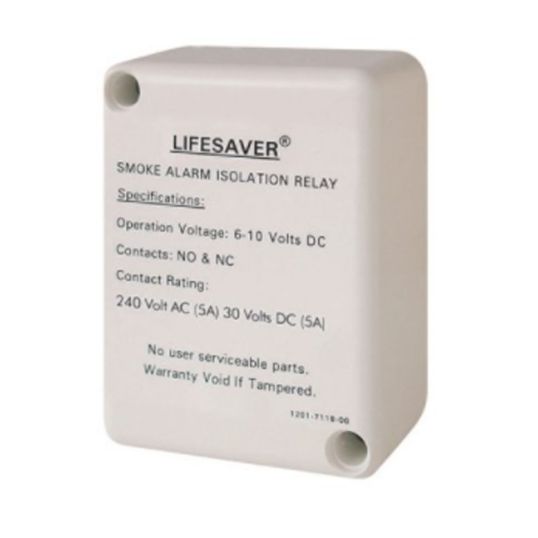

Isolation relay (Gen 2) for Lifesaver smoke, heat and CO alarms for connection to auxiliary devices such as sirens, sounders, emergency lights, security and fire panels.

Key Specifications

Barcode (EAN-13)	9318475001615
SKU	LIFSAIR
Brand	Lifesaver
Product Type	Isolation Units

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Operates in absence of mains voltage and only when alarm device is in alarm state Selectable relay options; latching, pulse and CO latching mode 240V AC/30V DC 5Amp contact rating Normally Open and Normally Close contact options When CO latching mode is selected, only CO alarm activation will trigger the isolation relay Contact Switching Time Delay - 4 seconds once activated
Standard Pack Size	1
UNSPSC Class	46191500
UOM	EA
Vendor Product	LIFSAIR
Coverage	Up to 24 Devices
Current	5 Amp
Dimensions	68 mm Width x 45 mm Height x 89 mm Depth
Frequency	50 Hz
Temperature	0 to 50 deg C
Voltage	240 Volt AC/30 Volt DC/5-10 Volt DC Coil
