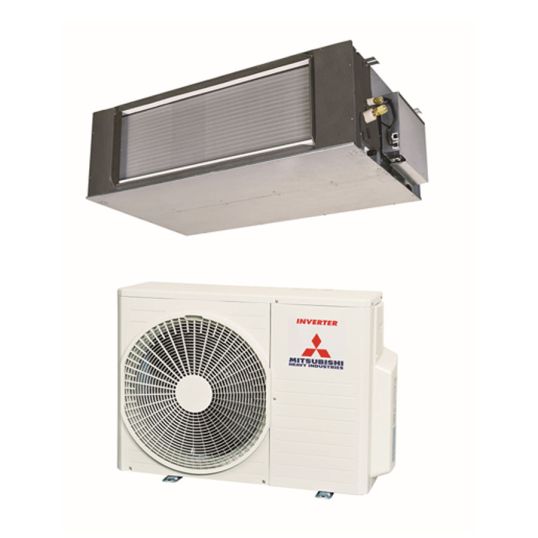

Mitsubishi Heavy Industries Ducted High Static Air Conditioner 10kW 14.7A Cooling 11.2kW 14A Heating R32

chevron-left
loader
Loading...

Description

chevron-down
Ducted High Static Air Conditioner, 10 kW Cooling Capacity, 11.2 kW Heating Capacity, 14.7 Amp Rated Current (Cooling), 14 Amp Rated Current (Heating), Cooling Air Flow Rate: P-High: 650 High: 600 l/sec, Heating Air Flow Rate: Medium: 550 Low: 483 l/sec, R32 Refrigerant, 55/70 dBA, 240 Volt 50 Hz 1 PH, 398mm x 1150mm x 650mm Indoor Dimensions, 845mm x 970mm x 370mm Outdoor Dimensions,-15 to 50 deg C Cooling,-20 to 20 deg C Heating

Key Specifications

chevron-down
SKU
MHIFDUA100AVNAWVH
Brand
Mitsubishi Heavy Industries
Product Type
Ducted Air Conditioning

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 40101700
UOM EA
Vendor Product FDUA100AVNAWVH
Cooling Air Flow Rate P-Hi: 650 Hi: 600 l/sec
Cooling Capacity 10 kW
Heating Air Flow Rate Med: 550 Low: 483 l/sec
Heating Capacity 11.2 kW
Indoor Dimensions 398 mm x 1150 mm x 650 mm
Outdoor Dimensions 845 mm x 970 mm x 370 mm
Power Supply 240 Volt 50 Hz 1 PH
Rated Current (Cooling) 14.7 Amp
Sound Level 55/70 dBA
Rated Current (Heating) 14 Amp
Refrigerant Type R32
Temperature -15 to 50 deg C Cooling-20 to 20 deg C Heating
