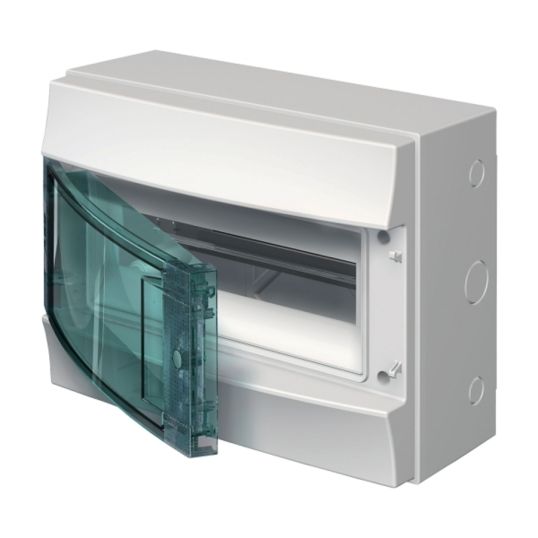

NHP Load Centre Distribution Board 12P 63A 415V 250x320x155mm

$NHP\NHP_NWP12.jpg$

Description

Versatile range of weatherproof loadcentres with an IP65 rating and is suitable for indoor and outdoor applications. The whole consumer unit (or just the front panel) can be rotated, easily changing the door opening side. In the multi-row versions, the centre distance of the DIN rails can be varied from 150 mm to 125 mm. The frame is extractable for quick and easy bench cabling, and it is possible to anchor the cable ties to special eyeholes on the frame. Resistant to saline environments, chemical industries, sandy/dusty, dust or UV rays in outdoor applications

Key Specifications

SKU	NHPNWP12
Brand	NHP
Range Name	NWP

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Blue transparent door Fixed support for DIN Rail Earth and Neutral bars AS/NZS 5112 Impact Rating IK10
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	NWP12
Current	63 Amp
Dimensions	250 mm Height x 320 mm Width x 155 mm Depth
Door Type	Hinged
IP Rating	IP65
Material	Plastic
Mounting Method	DIN Rail/Surface
Number Of Poles	12P
Voltage	415 Volt
