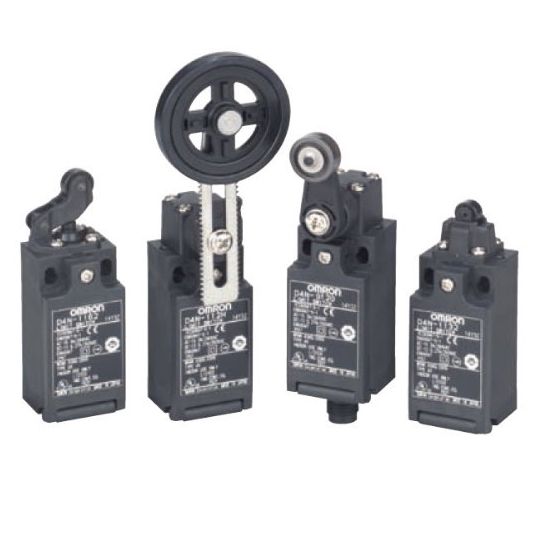

Omron Limit Switch Safety 1NO-1NC Snap Action Roller Lever IP67 RESIN

$Omron\Omron_D4N.jpg$

Description

Limit Switch Safety, 300 Volt, 10 Amp, 50/60 Hz, Roller Lever Actuator, 1NO+1NC, Snap Action, Screw, 15000000 Cycles, IP67, -30 to 70 deg C, 64 mm Length, 31 mm Width, 47 mm Depth

Key Specifications

Barcode (EAN-13)	4547648030335
SKU	OMRD4N-4120
Brand	Omron
Product Type	Limit Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Lineup includes models with 1NC/1NO, 2NC, 2NC/1NO and 3NC contact forms M12-connector models are also available, saving on labor and simplifying replacement Can be used with both standard loads and microloads
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	D4N-4120
IP Rating	IP67
Voltage	300 Volt
Contact Configuration	1NO+1NC Snap Action
Width	31 mm
Terminal Connection	Screw
Actuator Type	Roller Lever
Current	10 Amp
Depth	47 mm
Frequency	50/60 Hz
Temperature	-30 to 70 deg C
Operating Cycles	15000000 Cycles
