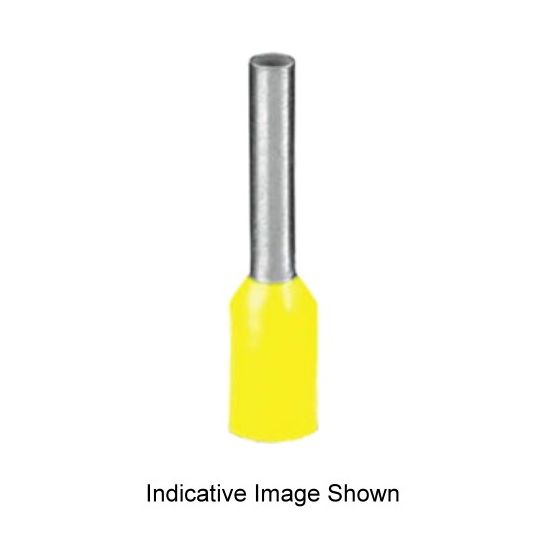

Phoenix Contact Bootlace Ferrule Insulated with Collar 1mm 1.5x6mm Pin Yellow 12.5mm OAL

Description

Bootlace Ferrule, Insulated with Collar, Conductor Size: 1 mm, Number of Conductors: 2, 12.5mm Overall Length, Max. Wire Strip Length: 9mm, Collar Inside Diameter: 3mm, Collar Thickness: 0.3mm, Pin Diameter: 1.5mm, Pin Length: 6mm, Pin Thickness: 0.15mm, Sleeve Material: Electrolytic Copper, Insulation Material: Polypropylene, Tin Plated Finish, Yellow Insulation, Flammability: UL94-HB, 105 deg C, 100 Pack, with Collar

Key Specifications

SKU	PHO3201327
Brand	Phoenix Contact
Product Type	Bootlace Ferrules

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The ferrules with plastic sleeve are made from soft tin plated electrolytic copper The AI 0,25.. ferrules can also be used to process 0.14 sq-mm conductors
Standard Pack Size	100
UNSPSC Class	39121400
UOM	PK
Vendor Product	3201327
Collar Inside Diameter	3 mm
Conductor Size	1 mm
Insulation Colour	Yellow
Flammability	UL94-HB
Collar Thickness	0.3 mm
Finish	Tin Plated
Overall Length	12.5 mm
Number of Conductors	2
Pin Diameter	1.5 mm
Pack Size	100 Pack
Please Note	with Collar
Pin Thickness	0.15 mm
Pin Length	6 mm
Sleeve Material	Electrolytic Copper
Temperature	105 deg C
Wire Strip Length	9 mm
