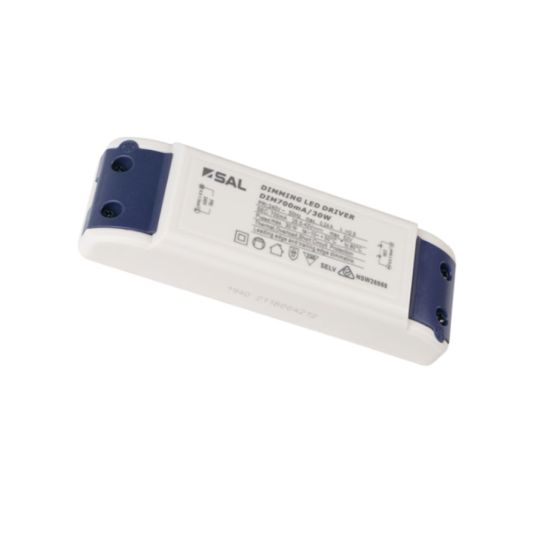

SAL Pluto LED Driver 240VAC/25.5-43V DC 700 mA 30 Watt For S9714 S9713/312 606 S9075

chevron-left
loader
Loading...

Description

chevron-down
LED Driver, 240 Volt AC/25.5-43 Volt DC, 700 mA, 50 Hz, Trailing Edge Dimming, IP20, 40 deg C, 140mm Length x 45mm Width x 28mm Height, 30 Watt

Key Specifications

chevron-down
SKU
SALPLUTO700MA/30W
Brand
SAL
Range Name
Pluto
Product Type
LED Drivers

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • The perfect choice for constant current electronic lighting circuits
  • Safe no load operation
  • SELV and EMC compliant
  • Overload and short circuit protection
  • Dimmable with trailing edge dimmer, dimming range 10% to 100%
  • Recommended SAL trailing edge dimmers SDD350UM, SDD400U, SDA450U, SDD350BT
  • For S9714 S9713/312 606 S9075
Standard Pack Size 1
UNSPSC Class 39121800
UOM EA
Vendor Product PLUTO700MA/30W
Current 700 mA
Dimensions 140 mm Length x 45 mm Width x 28 mm Height
Dimming Method Trailing Edge
Frequency 50 Hz
IP Rating IP20
Please Note 30 Watt
Temperature 40 deg C
Voltage 240 Volt AC/25.5-43 Volt DC
