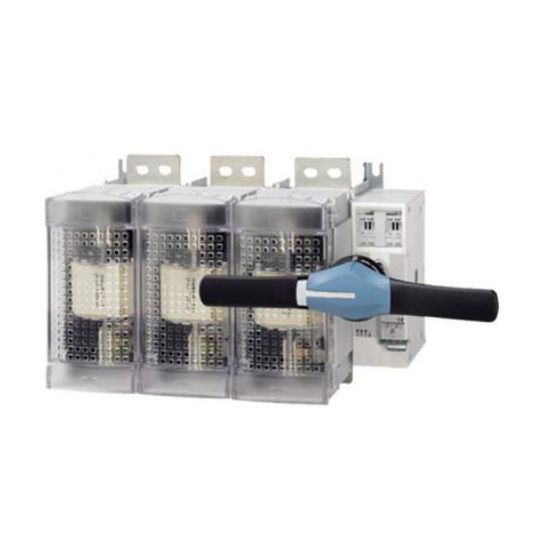

Socomec Switch-Fuse Standard Front Operated 4P 800A 400kW AC23 AC21-21 DIN Type 3 IP30

Description

Switch-Fuse Standard Front Operated, 400-690 Volt AC, 220-440 Volt DC, AC21 Rating: 800 Amp, AC23 Rating: 630 Amp @ 690 Volt, 800 Amp @ 400 Volt, 400 kW @ 690 Volt, 450 kW @ 400 Volt, 4 Pole, 3 Phase, IP30, Base Mount, Rotary Switch, For Fuse Link Size: DIN Type 3, 800 Amp, 2 x 185-2 x 300 mm Flexible Cable, Mechanical Durability: 8000 Cycles, 300 mm Height, 458 mm Width, 250 mm Depth, 70 deg C

Key Specifications

Barcode (EAN-13)	9321807197313
SKU	SOCSSFDN8004P
Brand	Socomec
Range Name	FUSERBLOC SSF DIN
Product Type	Switch-Fuses

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	90-degree rotatory open-close. supplied with handle and shaft for external operation Handles and switch fuse bodies both include a padlock facility to lock off the switch for lockout tagout (LOTO) insolation 100 kA fault rating Double breaking per pole (top and bottom) for isolated fuse removal Positive break indication Option: fuse monitoring device for remote blown fuse indication
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	SSFDN8004P
AC21 Rating	800 Amp AC21
Depth	250 mm
AC23 Rating	630 Amp @ 690 Volt/800 Amp @ 400 Volt
For Fuse Link Size	DIN Type 3
Fuse Rating	800 Amp
IP Rating	IP30
Height	300 mm
Mechanical Durability	8000 Cycles
Mounting Method	Base Plate
Number Of Poles	4 Pole
Phase	3 Phase
Terminal Capacity	2 x 185-2 x 300 mm Flexi Cable
Temperature	70 deg C
Switch Type	Rotary
Voltage	400-690 Volt AC/220-440 Volt DC
Width	458 mm
Wattage	400 kW @ 690 Volt/450 kW @ 400 Volt
