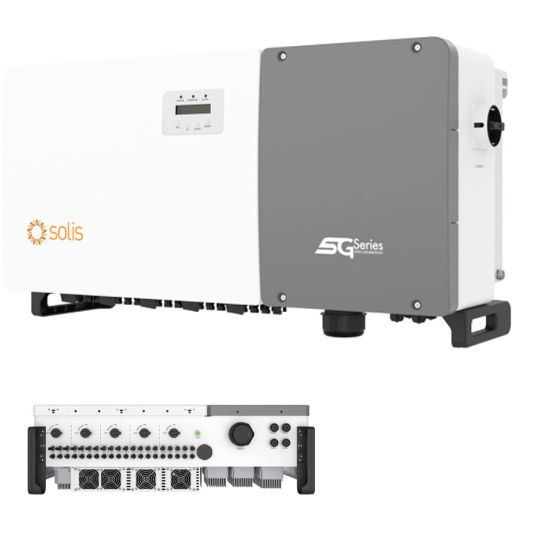

SOLIS 110kW Three phase string inverter 10 MPPT

$Solis\Solis_S5-GC.jpg$

Description

S5-GC(100-125)K three-phase series string inverter adopt 10 MPPT design to provide a more flexible configuration scheme with a smaller environmental impact rate and higher generation efficiency. Anti-resonance, supporting over 6MW paralleled in one transformer, Strings intelligent monitoring, Smart I-V Curve Diagnosis supported

Key Specifications

SKU	SOLS5-GC110K
Brand	Solis
Range Name	Inverter
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	10 MPPTs, max. efficiency 98.7% High power tracking density 100MPPT/MW String current up to 16 Amp, perfectly match large current bifacial modules AFCI protection, proactively reduces fire risk Overvoltage load reduction and leakage current suppression technology, low failure rate Intelligent string monitoring, smart I-V curve scan
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	S5-GC110K
AC Max. Apparent Power	121 kVA
AC Nominal Voltage	220 / 380 / 230 / 400 Volt 3/N/PE
AC Operating Frequency	50/60 Hz
AC Output Current	183.8 Amp
AC Output Power	110 kW
Communication Port	RS485 Optional: S3-Wi-Fi-ST / S3-GRPS-ST / PLC
Connection Type	DC: MC4 / AC: OT Terminal
Cooling Method	Intelligent Fan Cooling
DC Input Voltage	1100 Volt
DC MPPT Voltage Range	180-1000 Volt
DC Nominal Voltage	600 Volt
DC Start-up Voltage	195 Volt
DC Switch	Integrated
Depth	344.5 mm
Display Type	LCD
Efficiency	98.70%
European Weighted Efficiency	98.30%
Height	567 mm
IP Rating	IP66
Max. Operating Altitude	4000 mtr
Number of MPPTs	10
Phase	3 Phase
Operating Temperature	-30 to 60 deg C
Power Factor	>0.99 (0.8 Leading-0.8 Lagging)
Total Harmonic Distortion	<3%
Relative Humidity	0-100%
Topology	Transformerless
Width	1065 mm
