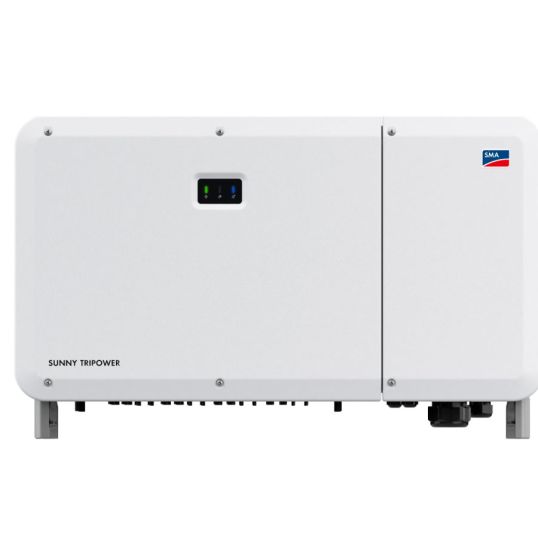

SMA Sunny Tripower Core 2 Solar Inverter 12 MPPT 3 Phase 110000W 26A

Name: SMA Core 2 Business Inverter 12 MPPT 3Ph 110kW
SKU: SSTSTP110-60
Availability: InStock

$SMA\SMA_SSTSTP110-60.jpg$

Description

Solar Inverter, 3 Phase, 165000 Watt DC Input, 1100 Volt DC Input, 500-800 Volt DC MPPT Voltage Range, 250 Volt DC Start-up, 26 Amp DC Max. Input, 12 MPPTs, 110000 Watt AC Output, 110000 VA AC Max. Apparent, 400 Volt AC Nominal, 50/45-55 Hz AC Operating, 159 Amp AC Output, 1 (0.8 Overexcited - 0.8 Underexcited) Power Factor, <=3% Harmonic Distortion, 98.6% Efficiency, 98.4% European Weighted Efficiency, Transformerless, Active Cooling Cooling, <65 dBA, Sunclix/Terminal Lug (up to 240 sq-mm) Connection, Wall/Rack Mounting, IP66, -30 to 60 deg C, 100% Relative Humidity, 682 mm Height, 1117 mm Width, 363 mm Depth, 93.5 kg, IEC 62109-1/-2, EN50549-1/-2:2018, VDE-AR-N 4105/4110/4120:2018, IEC 62109-1/-2, EN50549-1/-2:2018, VDE-AR-N 4105/4110/4120:2018

Key Specifications

SKU	SSTSTP110-60
Brand	SMA
Range Name	Sunny Tripower
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For Large Rooftop & Ground Mounted systems up to the MW Range 12 MPP Trackers 24 Strings with 1100 Vdc Sunclix Connectors 110kW for standard 400Vac Fast commissioning without additional DC Combiners Peak Efficiency of 98.6% Premium monitoring service for reliable system performance Maximum yields thanks to the integrated software solution SMA Shadefix Flexible & Future Proof expansion due to seamless system integration with the SMA Energy System Business Holistic energy management with ennexOS & high IT security
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	STP110-60
AC Max. Apparent Power	110000 VA
AC Nominal Voltage	400 Volt
AC Operating Frequency	50/45-55 Hz
AC Output Power	110 kW
AC Output Current	159 Amp
Connection Type	Sunclix/Terminal Lug (up to 240 sq- mm)
Cooling Method	Active
DC Input Power	165000 Watt
DC Max. Input Current	26 Amp
DC Input Voltage	1100 Volt
DC MPPT Voltage Range	500-800 Volt
DC Start-up Voltage	250 Volt
Depth	363 mm
Efficiency	98.60%
Height	682 mm
IP Rating	IP66
European Weighted Efficiency	98.40%
Mounting Method	Wall/Rack
Noise Level	<65 dBA
Number of MPPTs	12
Operating Temperature	-30 to 60 deg C
Phase	3 Phase
Power Factor	1 (0.8 Overexcited - 0.8 Underexcited)
Relative Humidity	100%
Topology	Transformerless
Total Harmonic Distortion	<=3%
Width	1117 mm
