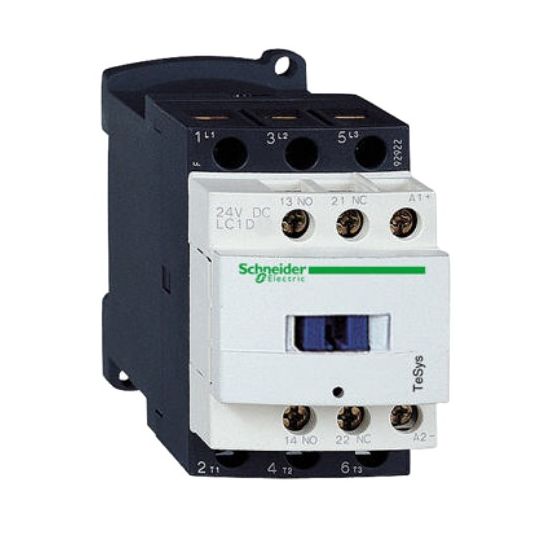

Contactor GP 3P 15kW 32A AC3 50A AC1 24VDC 1NO-1NC

Schneider Contactor General Purpose DC Operated 3 Pole 15kW 32A AC3 50A AC1 24VDC 1NO-1NC Aux DIN Rail/Plate Mount


Std Pack Size

You need to be registered and logged in to view product details and pricing

Contactor General Purpose DC Operated, 24 Volt DC, AC3 Rating (kW): 15, AC3 Rating (Amps): 32 at 440 Volt AC, AC1 Rating (Amps): 50 at 440 Volt AC, 690 Volt AC, 300 Volt DC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 65.45-88.55 ms Closing, 20-30 ms Opening, Screw Clamp, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 85 mm Height, 45 mm Width, 101 mm Depth

Additional Information

Additional Information
Brand Schneider
Range Name TeSys Model D
Standard Pack Size 1
UNSPSC Class 39121500
Vendor Product LC1D32BL
AC1 Rating (Amps) 50 Amp AC1
AC3 Rating (Amps) 32 Amp AC3
AC3 Rating (kW) 18.5 kW
Contact Configuration 1 Normally Opened & 1 Normally Closed Aux
Contact Voltage 690 Volt AC/300 Volt DC
Height 85 mm
IP Rating IP20
Depth 101 mm
Number Of Poles 3 Pole
Mounting Method DIN Rail/Plate
Operating Coil Voltage 24 Volt DC
Operating Time 65.45-88.55 ms Closing/20-30 ms Opening
Temperature -40 to 60 deg C
Product Type Contactors General
Width 45 mm
Terminal Connection Screw Clamp
