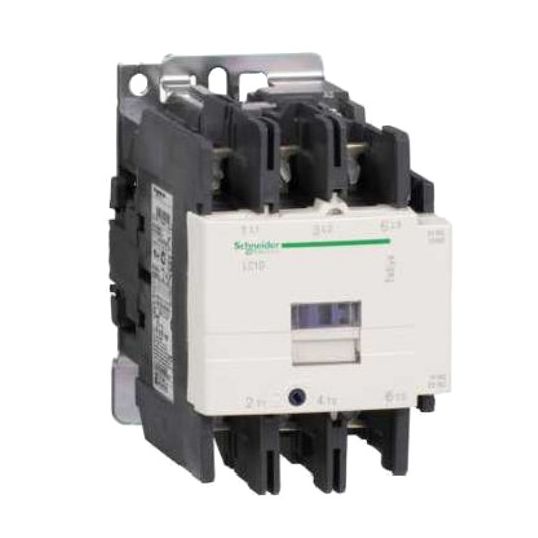

Contactor GP 3P 45kW 95A AC3 125A AC1 48V 1NO-1NC

Schneider Contactor General Purpose AC Operated 3 Pole 45kW 95A AC3 125A AC1 48V 1NO-1NC Auxilary DIN Rail/Plate Mount

PRODUCT CODE:
TEELC1-D95E7

Std Pack Size
1
OUR P/N:
TEELC1-D95E7

You need to be registered and logged in to view product details and pricing

Contactor General Purpose AC Operated, 48 Volt AC, AC3 Rating (kW): 45, AC3 Rating (Amps): 95 at 440 Volt AC, AC1 Rating (Amps): 125 at 690 Volt AC, 1000 Volt AC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 20-35 ms Closing, 6-20 ms Opening, Screw Clamp, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 127 mm Height, 85 mm Width, 130 mm Depth

Additional Information

Additional Information
Brand Schneider
Range Name TeSys Model D
Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product LC1D95E7
AC1 Rating (Amps) 125 Amp AC1
AC3 Rating (Amps) 95 Amp AC3
AC3 Rating (kW) 45 kW
Contact Configuration 1 Normally Opened & 1 Normally Closed Aux
Contact Voltage 1000 Volt AC
Height 127 mm
IP Rating IP20
Depth 130 mm
Number Of Poles 3 Pole
Mounting Method DIN Rail/Plate
Operating Coil Voltage 48 Volt AC
Operating Time 20-35 ms Closing/6-20 ms Opening
Temperature -40 to 60 deg C
Product Type Contactors General
Width 85 mm
Terminal Connection Screw Clamp
