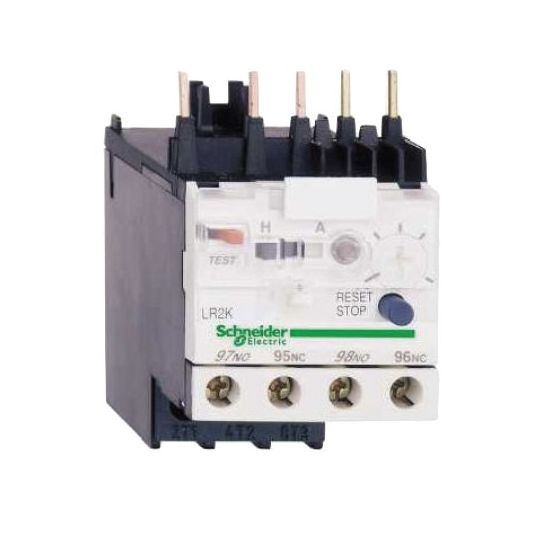

Schneider Differential Thermal Overload Relay DIN Rail/Plate Mount 0.54-0.8A 1NO-1NC Class 10A Auto/Man IP2x Screw Clamp

Description

Differential Thermal Overload Relay, Setting Range From (Amp): 0.54, Setting Range To (Amp): 0.8, <=690 Volt, 1NO-1NC, Class 10A, Automatic/Manual, Tightening Torque: 1.3 N/m, DIN Rail/Plate Mount, Screw Clamp Terminal, IP2x, -20 to 55 deg C, 58 mm Height, 45 mm Width, 65 mm Depth, For Use With: LC1K to LC7K/LP1K to LP4K Contactors

Key Specifications

Barcode (EAN-13)	3389110230390
SKU	TEELR2-K0305
Brand	Schneider
Range Name	TeSys Model K
Product Type	Overload Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	LR2K0305
Contact Configuration	1 Normally Opened & 1 Normally Closed
Control Type	Automatic/Manual
Depth	65 mm
For Use With	LC1K to LC7K/LP1K to LP4K Contactors
Height	58 mm
IP Rating	IP2x
Mounting Method	DIN Rail/Plate
Operational Voltage	<=690 Volt
Setting Range From (Amp)	0.54
Temperature	-20 to 55 deg C
Setting Range To (Amp)	0.8
Terminal Connection	Screw Clamp
Width	45 mm
Tightening Torque	1.3 N/m
Trip Characteristic	Class 10A
