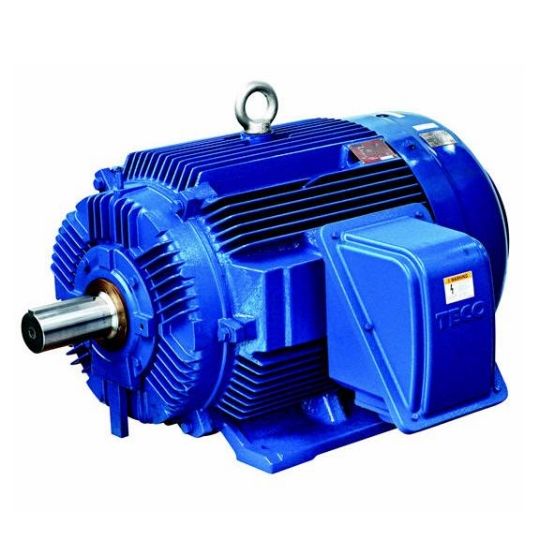

Teco Electric Motor Squirrel Cage Induction Mine Spec 4P 0.75kW 3Ph 380/415V Shaft 19mm D80 Frame Flange Mount

Description

Electric Motor Squirrel Cage Induction Mine Spec, 380/415 Volt AC, 1.66 Amp, 1 HP, 50 Hz, 3 Phase, 1440 rpm, 0.75 kW Output, 4 Pole, IP66, Frame: D80, 19 mm Shaft, Rotation: Bi Directional-Low Noise, Power Factor: 74.5 at 100% Load, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Direct On Line Starting, Soft Starter/VVVF Duty, Torque: 4.97 N/m, Flange Mounting, Insulation Class: Class H, Efficiency: 84.5 at 100% Load, Cast Iron Frame, Finish: Orange Paint, 55 deg C, 282 mm Length

Key Specifications

SKU	TEO012/H0.75DD4R
Brand	Teco
Range Name	Max E3 Mining
Product Type	Motors SCIM Mine Spec

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Totally enclosed fan cooled High efficiency motors True IP66 with porous drain plugs Class H insulation system Superior inverter rated insulation (8500 V/microsecond) Precision and rugged cast iron construction including fan Typical temperature rise less than Class E 1.2 service factor at 40 deg C ambient Suitable for 60 deg C ambient at rated output TECO renowned grease relief system
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	012/H0.75DD4R
Colour	Orange
Bearing Type	Ball
Current	1.66 Amp
Efficiency	84.5 at 100% Load
Frame	Size D80
Frame Material	Cast Iron
Frequency	50 Hz
Horsepower	1 kW
Insulation Class	Class H
IP Rating	IP66
Mounting Method	Flange
Number Of Poles	4 Pole
Output	0.75 kW
Phase	3 Phase
Power Factor	74.5 at 100% Load
Rotation	Bi Directional-Low Noise
Service Factor	1/1.15 p.u at Class B/F
Speed	1440 rpm
Shaft Size	19 mm
Starting Method	DOL, Soft Starter/VVVF Duty
Temperature	55 deg C
Torque Rating	4.97 N/m
Voltage	380-415 Volt AC
