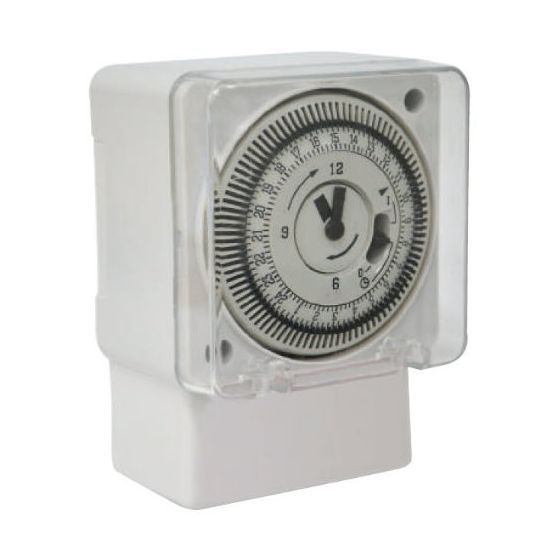

Theta Time Switch Analogue 24 Hour 1 Channel 240V 16A 150hr Reserve DIN Rail/Surface Mount
Loading...
Description
Time Switch Analogue 24 Hour, 240 V, 16 Amp Switching Capacity, 50 Hz, 1 Channels, Screw, 150 hr Reserve Battery Backup, 0.5-2.5 mm Terminal Capacity, IP40, DIN Rail/Surface,-10 to 45 deg C
Key Specifications
| Barcode (EAN-13) |
9323441035587
|
|---|---|
| SKU |
THTTS24HQ
|
| Brand |
Theta
|
| Product Type |
Time Switches Analogue
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | TS24HQ |
| Battery Backup | 150 hr Reserve |
| Connection Type | Screw |
| Frequency | 50 Hz |
| IP Rating | IP40 |
| Mounting Method | DIN Rail/Surface |
| Number of Channels | 1 Channel |
| Temperature | -10 to 45 deg C |
| Switching Capacity | 16 Amp |
| Terminal Capacity | 0.5-2.5 sq-mm |
| Voltage | 240 Volt |
