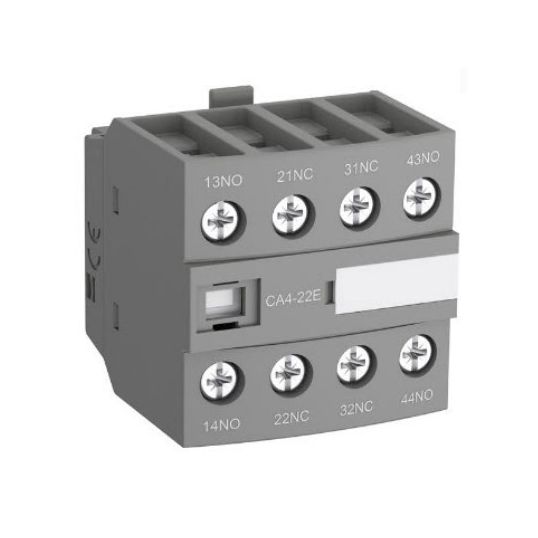

ABB Auxiliary Contact Block Front Mount 2 Pole 2/3/4/6A 24-690V 2NO-2NC IP20 Screw

Description

Auxiliary Contact Block Front Mount, 24-690 Volt AC Operational Voltage, 2/3/4/6 Amp Operational Current, 2 Normally Opened/2 Normally Closed Configuration, 4 Pole, Front Mounting, Screw Terminal, For Use With AF09 to AF96B Contactors, IP20, 43 mm Height, 43 mm Width, 39.5 mm Depth

Key Specifications

Barcode (EAN-13)	3471523130128
SKU	ABBCA422E
Brand	ABB
Product Type	Contactor Auxiliaries

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for standard industrial environments CAL4 2-pole block, with instantaneous N.O. + N.C. contacts For clipping onto the right- and/or left-hand side of the contactors The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected against accidental direct contact and bear the corresponding function marking
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	CA422E
Contact Configuration	2 Normally Opened/2 Normally Closed
Depth	39.5 mm
For Use With	AF09 to AF96B Contactors
Height	43 mm
IP Rating	IP20
Number Of Poles	4 Pole
Mounting Method	Front
Operational Voltage	24-690 Volt AC
Operational Current	2/3/4/6 Amp
Terminal Connection	Screw
Width	43 mm
