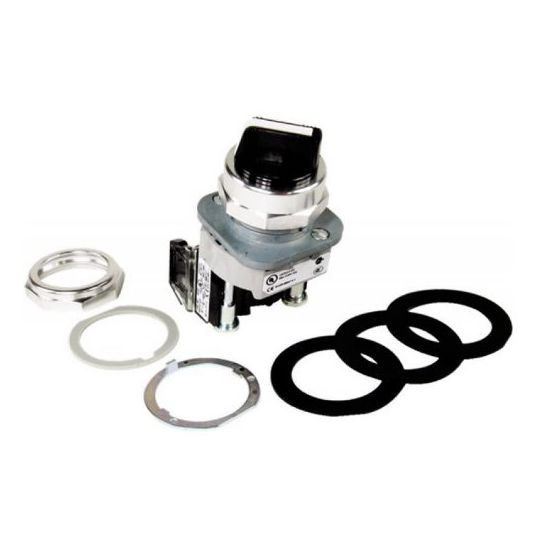

Allen-Bradley Rotary Selector Switch 2 Position Metal Body Non Illuminated Latched/Maintained 1NO-1NC Contact White

Description

Rotary Selector Switch, Latched/Maintained, 1NO/1NC Contact Block, 30.5mm Mounting Hole mm, 2 Position, Knob Operator, 1000000 hr, IP66, Panel Mount, Metal Body, Zinc, White, -40 to 55 deg C

Key Specifications

Barcode (EAN-13)	10611320005759
SKU	ALB800TC-H2A
Brand	Allen-Bradley
Product Type	Selector Actuators Rotary

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	800T (metal) and 800H (plastic) 30.5mm product lines are designed and constructed to perform in the most demanding industrial environments Button caps made from thermoplastic polyester resin and deliver excellent resistance to corrosive agents and ensure color identification is never lost Operator bushings are made from die cast zinc alloy giving strength and stability in installation Riveted construction of the operator bushing, diaphragm seal and base plate, by four secure steel rivets, provides increased durability and tamper resistance
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	800TCH2A
Colour	White
Contact Configuration	1 Normally Opened & 1 Normally Closed Contact Block
Mounting Diameter	30.5 mm
Mounting Method	Panel
Number of Positions	2
IP Rating	IP66
Operating Cycles	1000000 hr
Operator Action	Latched/Maintained
Operator Type	Knob
Temperature	-40 to 55 deg C
