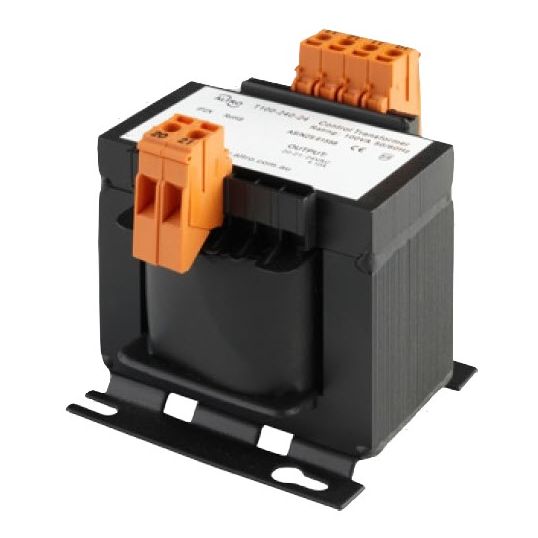

Altro Control Transformer Standard 1Ph In 240V Out 24V 50/60 Hz 160VA

$Altro\Altro_T_TM_Series_Transformer.jpg$

Description

Control Transformer Standard, In: 240 Volt AC, Out: 24 Volt AC, 160 VA, 50/60 Hz, 1 Phase, Insulation: Class F (155C), IP22, IP44, IP66, Polycarbonate/Iron Core, Powder Coated Steel, 60 deg C, 92 mm Height, 96 mm Width, 92 mm Depth

Key Specifications

SKU	ALTT160-240-24
Brand	Altro
Product Type	Transformers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Low loss iron core Separate insulated windings Fully impregnated with tropic proof anti fungus varnish Slotted holes for fast installation Quality terminal blocks
Standard Pack Size	1
UNSPSC Class	39121000
UOM	EA
Vendor Product	T160-240-24
Depth	92 mm
Frequency	50/60 Hz
Height	92 mm
Input Voltage	240 Volt AC
Insulation	Class F (155C)
IP Rating	IP22/44/66
Output Voltage	24 Volt AC
Output Rating	160 VA
Phase	1 Phase
Temperature	60 deg C
Width	96 mm
