Std Pack Size
305
OUR P/N:
BEL1190A0101000

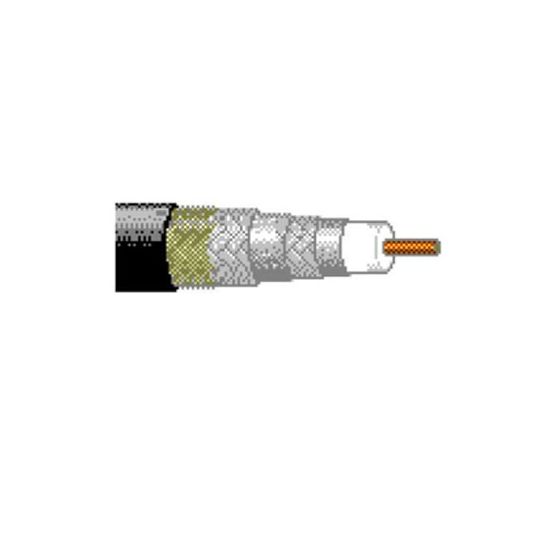

RG6 Coaxial Cable CATV, 350 Volt, 18 AWG, Bare Copper Covered Steel, 0.040 in Conductor Diameter, Bend Radius: 3 in, 1 Core, Pulling Tension: 162 lb, Stranding: Solid, Conductor Resistance: 28 Ohm/1000 ft at 20 deg C, Capacitance: Conductor to Shield: 16.2 pF/ft, 75 +/-3 Ohm Impedance, Aluminium 60/40% Coverage Braid, Gas Injected Foam Polyethylene Insulation, Polyethylene Sheath, Aluminium Foil-Polyester Tape-Aluminium Foil 100% Coverage Screen, Black Sheath, 0.298 in Overall Diameter,-55 to 80 deg C
Additional Information
Brand | Belden |
---|---|
Standard Pack Size | 305 |
UNSPSC Class | 52161600 |
UOM | MTR |
Vendor Product | 1190A 0101000 |
Conductor Size | 18 AWG |
Product Type | Coax Cable |
Sheath Colour | Black |
Overall Diameter | 0.298 in |
Capacitance | Conductor to Shield: 16.2 pF/ft |
Temperature | -55 to 80 deg C |
Sheath Material | Polyethylene |
Conductor Resistance | 28 Ohm/1000 ft at 20 deg C |
Screen Material | Aluminium Foil-Polyester Tape-Aluminium Foil 100% Coverage |
Pulling Tension | 162 lb |
Conductor Diameter | 0.040 in |
Number of Cores | 1 Core |
Bend Radius | 3in |
Braid Material | Aluminium 60/40% Coverage |
Insulation Material | Gas Injected Foam Polyethylene |
Stranding | Solid |
Conductor Type | Bare Copper Covered Steel |
