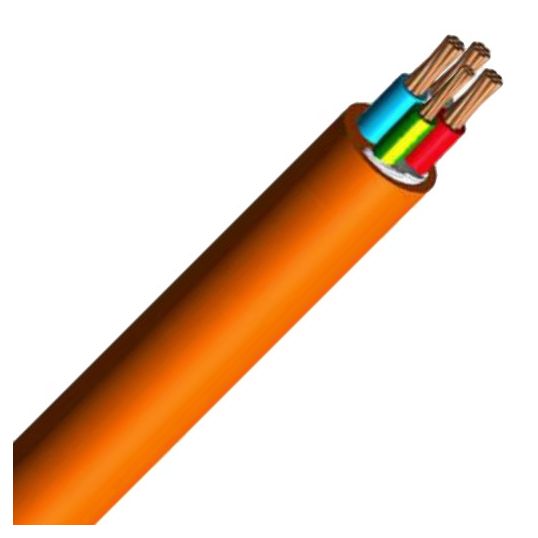

16mm Orange Circular Cable Unarmoured PVC/PVC 100mtr
Loading...
Description
Circular Power Cable, Unarmoured, 3 Core & Earth, 16mm, Plain Annealed Copper, 0.6/1 kV, 7/1.7mm Strands, 5.1mm Nominal Diameter, 6mm Earth Conductor, 20.7mm Overall Diameter, 80mm Bend Radius, 1mm Insulation Thickness, Conductor Resistance: DC - 1.15 Ohm/km, V-90 PVC Insulation, 5V-90 PVC Sheath, Red White Blue Green/Yellow Cores, Orange Sheath, 75 deg C, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
9310835902730
|
|---|---|
| SKU |
CBL16/3CEOC
|
| Brand |
Generic
|
| Product Type |
Circular Cable Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20199650 |
| Bend Radius | 80 mm |
| Conductor Resistance | DC: 1.15 Ohm/km |
| Conductor Size | 16 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Red/Blue/White/Green/Yellow |
| Insulation Thickness | 1 mm |
| Insulation Material | PVC |
| Earth Conductor Size | 6 mm |
| Nominal Diameter | 5.1 mm |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 20.7 mm |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Stranding | 7/1.7 mm |
| Standards | AS/NZS 5000.1 |
| Temperature | 75 deg C |
| Voltage | 0.6-1 kV |
