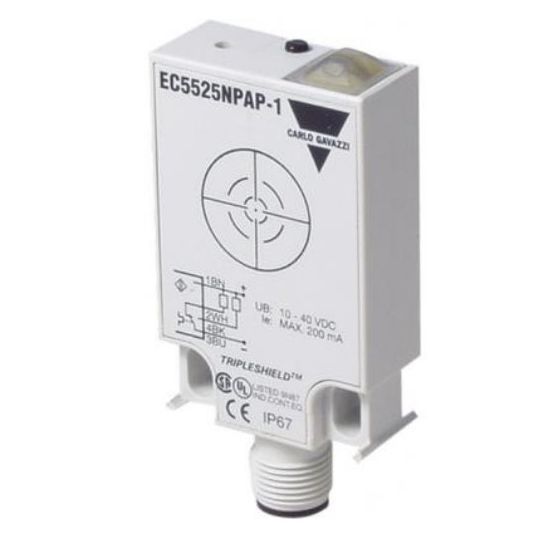

Carlo Gavazzi Proximity Switch Capacitive Sensing Unshielded Non-Flush 10-40VDC NPN 1NO-1NC M12 Plug

Description

Proximity Switch Capacitive Sensing Unshielded Non-Flush, Rectangular, Sensing Range: 4-25 mm, Right Angle, NPN, 10-40 Volt DC, M12 Plug, 1NO/1NC, Flush Mount/Panel, IP67, Plastic, -25 to 80 deg C, 55 mm Height, 35 mm Width, 15 mm Depth

Key Specifications

SKU	CGVEC5525NPAP1
Brand	Carlo Gavazzi
Range Name	Type EC
Product Type	Proximity Sensors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Wide range of operating voltages, current ratings and output types Extensive range of different housing styles and mounting options Specialised versions with IP69K rating available for high-pressure washdown applications for food and beverage industry Specialised loop detector sensors available which are utilised for vehicle detection in the control of boom-gates 5m cable supplied with all sensors with plug-versions
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	EC5525NPAP1
Connection Type	M12 Plug
Contact Configuration	1 Normally Opened & 1 Normally Closed
Depth	15 mm
Height	55 mm
IP Rating	IP67
Mounting Method	Flush/Panel
Material	Plastic
Operating Voltage	10-40 Volt DC
Output Function	NPN
Sensing Position	Right Angle
Sensing Range	4-25 mm
Shape	Rectangular
Temperature	-25 to 80 deg C
Width	35 mm
