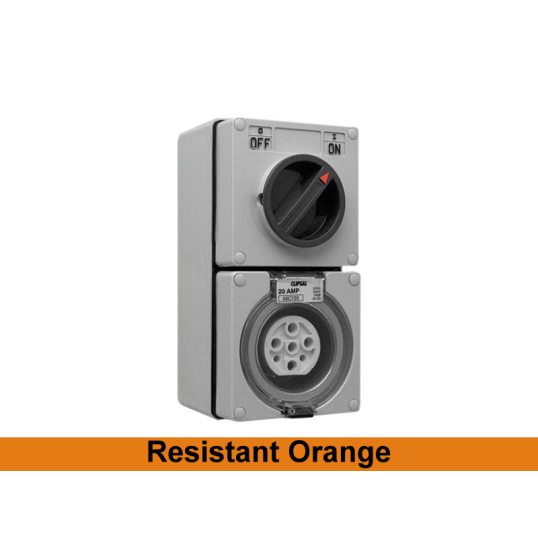

Clipsal 56 Series Switch Socket Outlet Surface Mounting Weatherproof 3Ph 20A 500V 7 Pin Round Resistant Orange IP66
Loading...
Description
Switch Socket Outlet Surface Mounting Weatherproof, 3 Phase, 20 Amp, 500 Volt AC, 50 Hz, 7 Pole, 7 Pin Round, 3P + N + E, 2 Aux, Screw, Surface Mount, IP66, PC And PET Cover, Phosphor Bronze Pin, Chemical Resistant Orange, 204 mm Height, 101 mm Width, 108 mm Depth, -25 to 75 deg C
Key Specifications
| Barcode (EAN-13) |
9311554070519
|
|---|---|
| SKU |
CLI56C720RO
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Switch Sockets
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 56C720-RO |
| Colour | Chemical Resistant Orange |
| Connection Type | Screw |
| Current | 20 Amp |
| Depth | 108 mm |
| Frequency | 50 Hz |
| Height | 204 mm |
| IP Rating | IP66 |
| Mounting Method | Surface |
| Number Of Poles | 7 Pole |
| Phase | 3 Phase |
| Pin Configuration | 7 Pin Round (3 + Neutral + Earth + 2 Aux) |
| Temperature | -25 to 75 deg C |
| Voltage | 500 Volt |
| Width | 101 mm |
