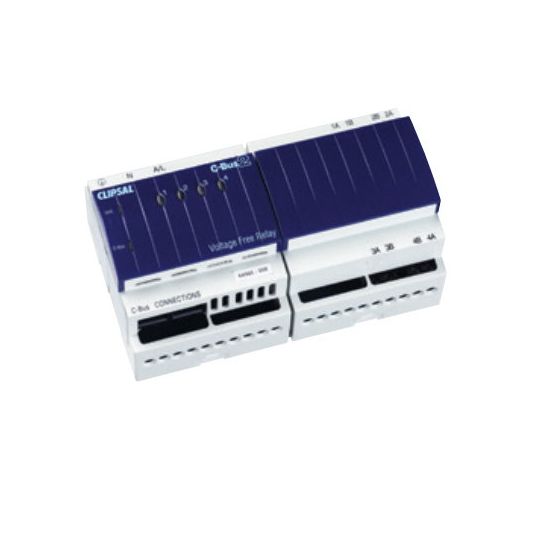

Clipsal C-Bus Relay Unit DIN Rail-Mount Voltage Free 4 Channel 240V 10A without Power Supply

Description

DIN Rail Mounted Relay, 240 Volt AC, Supply: 15-36 Volt DC, 10 Amp, Number of Channels: 4, Number of Modules: 8, Terminal Type: Screw, Mounting Method: DIN Rail, 144mm Width, 85mm Height, 65mm Depth

Key Specifications

Barcode (EAN-13)	9311554335762
SKU	CLIL5504RVFP
Brand	Clipsal
Product Type	Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	4-channel relay module, DIN rail-mounted 8M DIN modules wide Featuring 4-channels of voltage-free relay switching Rated at 10Amp incandescent or 10Amp fluorescent load per channel Incorporates a software selectable network burden and C-Bus system clock A maximum of 100 units may be connected to any C-Bus network Draws 18mA from C-Bus network when mains is not connected C-Bus Learn Enabled
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	L5504RVFP
Channels	4 Channel
Current	10 Amp
Depth	65mm
Height	85mm
Modules	8 Modules
Mounting Method	DIN Rail
Terminal Type	Screw
Width	144mm
Voltage	240 Volt
