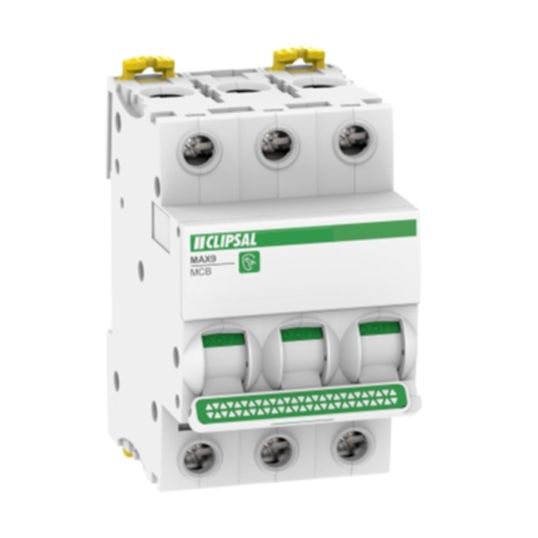

Clipsal MAX9 Miniature Circuit Breaker 3 Pole C Curve 25A 6000A Distribution

Description

Miniature Circuit Breaker C Curve, 415 Volt, 25 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 3 Pole, 5-10 Im, Tunnel Type (Top or Bottom) 1-16 sq-mm Flexible/1-25 sq-mm Rigid Terminal, IP20, 25 to 70 deg C, 85 mm Height, 54 mm Width, 75 mm Depth

Key Specifications

Barcode (EAN-13)	9311554813956
SKU	CLIMX9MC325
Brand	Clipsal
Range Name	Max9
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	MX9MC325
Current	25 Amp
Depth	75 mm
Frequency	50/60 Hz
Height	85 mm
Interrupt Capacity	6 kA
Magnetic Setting	5-10 Im
Number Of Poles	3 Pole
IP Rating	IP20
Temperature	25 to 70 deg C
Terminal Type	Tunnel Type (Top or Bottom) 1-16 sq-mm Flexible/1-25 sq-mm Rigid
Voltage	415 Volt
Width	54 mm
