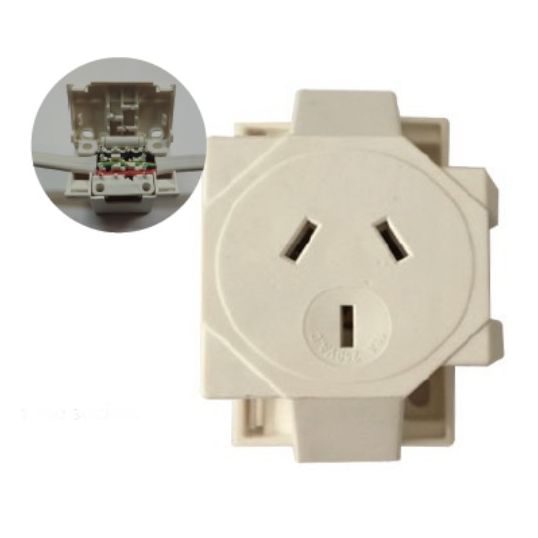

CLA Lighting Socket Outlet Surface Mount In-Line Quick Connect 1 Gang 10A 240V 3 Pin Polarized Flat Earth

chevron-left
loader
Loading...

Description

chevron-down
Surface Socket, 240 Volt, 10 Amp, 50 Hz, 3 Pin Polarized Flat Earth, 1 Gang, In-Line Screw Connection, 1 x 2.5 sq-mm Terminal Capacity, Surface Mounting, Polycarbonate, White, 70.4 mm Height, 49.5 mm Width

Key Specifications

chevron-down
Barcode (EAN-13)
9326191025136
SKU
CLLSOCK2
Brand
CLA

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • The cable must be stripped back first before placing cable in the socket
  • Product is earthed
Standard Pack Size 10
UNSPSC Class 39122200
UOM EA
Vendor Product SOCK2
Colour White
Connection Type In-Line Screw
Current 10 Amp
Frequency 50 Hz
Height 70.4 mm
Material Polycarbonate
Mounting Method Surface
Number Of Gangs 1 Gang
Pin Configuration 3 Pin Polarized Flat Earth
Terminal Capacity 1 x 2.5 sq-mm
Voltage 240 Volt
Width 49.5 mm
