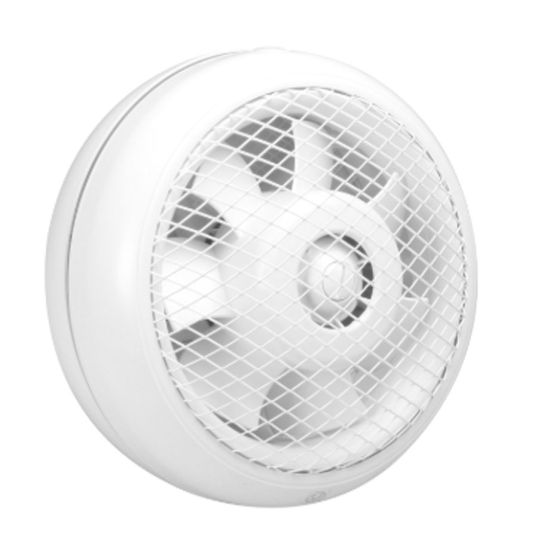

FantechTrade Exhaust Fan 150mm 230 Volt 0.16 Amp 0.216 cu-m/hr 183-188mm Cut-Out 33dBA at 3m White

Description

The HCM wall/window mounted fan is suitable for domestic kitchens and bathrooms. It features powerful air flow performance and quiet operation.

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Available in 3 sizes for 230 V supply All models incorporate air operated shutters Impeller blades are sickle shaped for high performance Quiet operation IPX4 protection rating Weather cap optional for protection against harsh external conditions Suitable for mounting on vertical plain only For wall mounting, a kit of threaded wall rods and sleeves can be supplied as an optional extra caters for walls ranging in thickness from 25 to 300mm
Standard Pack Size	1
UNSPSC Class	40101600
UOM	EA
Vendor Product	HCM-150N
Air Flow Cubic Meters per Hour	0.216 cu-m/hr
Air Flow Litres per Second	0.06 l/sec
Colour	White
Current	0.16 Amp
Cut-Out Size	183-188 mm
Duct Size	150 mm
Fan Size	150 mm
Fan Speed	32 rps
Frequency	50 Hz
IP Rating	IPX4
Material	Plastic
Motor Type	Squirrel Cage/Capacitor Run/Class B
Mounting Method	Ceiling/Wall
Noise Level	33 dBA at 3 mtr
Phase	1 Phase
Temperature	40 deg C
Voltage	230 Volt
Wattage	25 Watt
Width	60 mm
