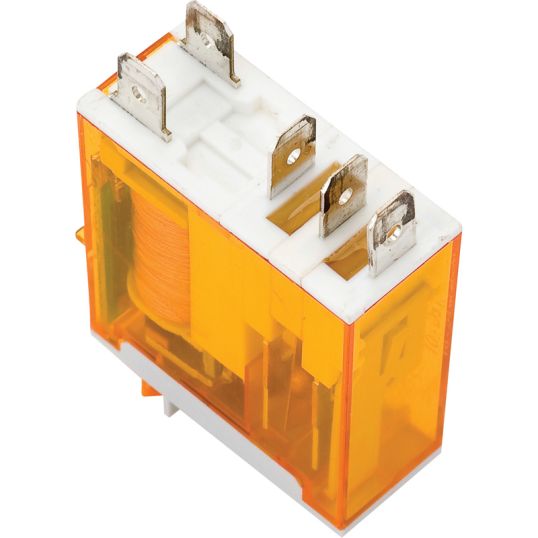

Finder Miniature Relay Plug In Or Faston Connection 1P 1CO 16A 24V 5 Pin Flat

Description

Miniature Relay, 250 Volt AC, 24 Volt AC Coil Voltage, 16 Amp, 0.55 kW, 5 Pin Flat, 1 Pole, 1 Changeover Configuration, 320 Ohm, 5 ms Breaking/15 Making Operating Time, 100000 Cycles, Plug-In/Faston Connection Mounting, Silver Nickel (Ag/Ni) Contact, -40 to 70 deg C, 32.8 mm Height, 29 mm Width, 12.4 mm Depth, With PB plus/LED plus/Mechanical Indicator

Key Specifications

Barcode (EAN-13)	8012823301730
SKU	FID46.61.005424VAC
Brand	Finder
Range Name	Series 46

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Complete range from PCB to power relays to cover all of your switching requirements Compact construction allowing for most efficient use of space
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	4661005424VAC
Contact Configuration	1 Changeover
Depth	12.4 mm
Height	32.8 mm
Current	16 Amp
Mounting Method	Plug-In/Faston Connection
Contact Material	Silver Nickel (Ag/Ni)
Number Of Poles	1 Pole
Operating Coil Voltage	24 Volt AC
Operating Cycles	100000 Cycles
Pin Configuration	5 Pin Flat
Operating Time	5 ms Breaking/15 Making
Please Note	With PB plus/LED plus/Mechanical Indicator
Power Rating	0.55 kW
Resistance	320 Ohm
Temperature	-40 to 70 deg C
Voltage	250 Volt AC
Width	29 mm
