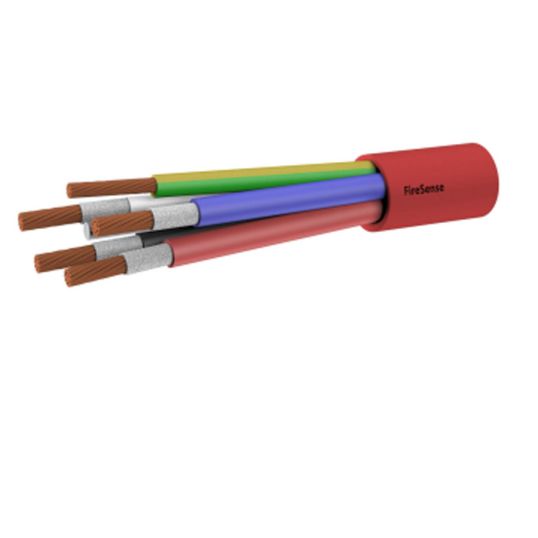

FireSense 16 mm Fire Rated Cable X-HF-110/HFS-110-TP Red 1mtr

Description

Fire Rated Cable, 16 mm, Class 6 Stranded Annealed Copper, 0.6-1 kV, 4 Core + Earth, 6 mm Earth Conductor, 27 mm Overall Diameter, 1 mtr Length, 270 mm Bend Radius, DC: 1.21 Ohm/km Conductor Resistance, Red/White/Black/Blue/Green/Yellow Core, X-HF-110 Insulation, Red/Blue/White/Black/Green/Yellow Insulation, HFS-110-TP Sheath, Red Sheath, WS52W, -25 to 110 deg C, AS/NZS 3013 AS/NZS 5000.2 AS/CA S008 AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	FIRFR-16-4C+E
Brand	FireSense
Product Type	Fire Rated Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	2 hr fire rated 110 deg C conductor temperature AS/NZS 3013-WS52W approved, AS/NZS 5000.2 approved, AS/CA S008 compliant RCM certified ActivFire certified Flame retardant Flexible Class 6 conductors (10-50 mm) Low smoke zero halogen (PVC Free) Third Party Accredited Available ex-stock
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FR-16-4C+E
AS3013 Rating	WS52W
Bend Radius	270 mm
Conductor Resistance	1.21 Ohm/km
Conductor Size	16 mm
Conductor Type	Class 6 Stranded Annealed Copper
Core Colours	Black/Blue/Red/White/Green/Yellow
Earth Conductor Size	6 mm
Insulation Colour	Black/Blue/Red/White/Green/Yellow
Insulation Material	X-HF-110
Number of Cores	4 Core + Earth
Overall Diameter	27 mm
Sheath Colour	Red
Sheath Material	HFS-110-TP
Standards	AS/NZS 3013 AS/NZS 5000.2 AS/CA S008 AS/NZS 1125 AS/NZS 3808
Temperature	-25 to 110 deg C
Voltage	0.6-1 kV
