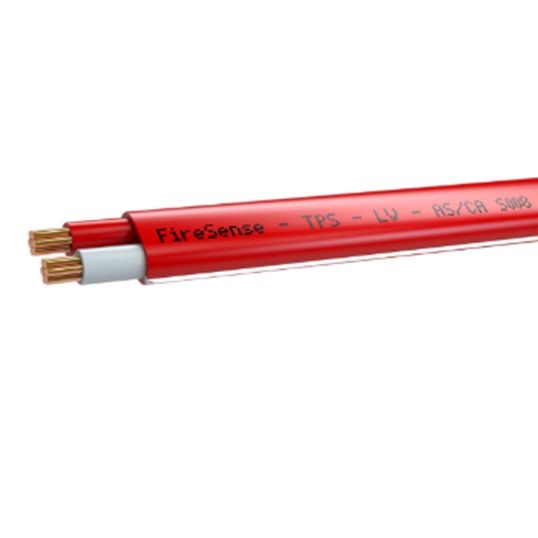

FireSense 0.75mm Flat TPS Cable Fire Alarm 500mtr

Description

Flat TPS Cable Fire Alarm, 0.75 mm, Stranded Annealed Copper, 250 Volt, 2 Core, 7/0.37 mm Strands, 6.4 mm x 4.1 mm Overall Diameter, 500 mtr Length, 24.3 Ohm/km Conductor Resistance, V-90 PVC Insulation, Red/White Insulation, V-90 PVC Sheath, Red Sheath, AS/NZS 1125 AS/NZS 3808 AS/CA S008 AS 1670:2018 AS/NZS 3013

Key Specifications

SKU	FIRTPSLD0.75-2CW-500
Brand	FireSense
Product Type	Flat Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TPSLD-0.75-2CW-500
Conductor Resistance	24.3 Ohm/km
Conductor Size	0.75 mm
Conductor Type	Stranded Annealed Copper
Insulation Colour	Red/White
Insulation Material	V-90 PVC
Number of Cores	2 Core
Overall Diameter	6.4 mm x 4.1 mm
Sheath Colour	Red
Sheath Material	V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/CA S008 AS 1670:2018 AS/NZS 3013
Stranding	7/0.37 mm
Voltage	250 Volt
