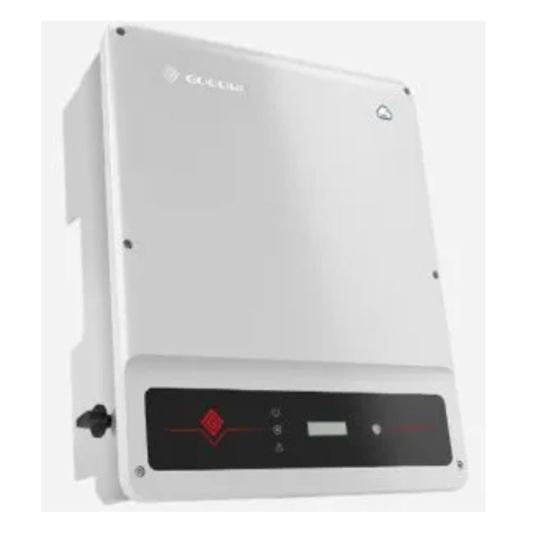

Goodwe SDT G2 Series Solar Inverter Three Phase 5000W 2 MPPT

chevron-left
loader
Loading...

Description

chevron-down
Solar Inverter, 3 Phase Phase, 7500 Watt DC Input, 1000 Volt DC Input, 620 Volt DC Nominal, 180-850 Volt DC MPPT Voltage Range, 180 Volt DC Start-up, 16 Amp DC Max. Input, 2 MPPTs, 5000 Watt AC Output, 5500 VA AC Max. Apparent, 400 Volt, 50/60 Hz, 8 Amp AC Output, 1 (Adjustable 0.8 Leading-0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 0.982 Efficiency, 0.976 European Weighted Efficiency, Non-Isolated, 3000 mtr Max. Altitude, Integrated DC Switch, RS485/Wi-Fi or LAN or 4G (Optional), Natural Convection Cooling, DC: MC4/AC: Plug and Play Connection, IP65, -30 to 60 deg C

Key Specifications

chevron-down
SKU
GDWGW5000-SDT-20
Brand
Goodwe
Product Type
Inverters

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Up to 98.4% maximum efficiency
  • Arc fault circuit interrupter optional
  • 150% DC input oversizing and 110% AC output overloading
  • Easy installation and O&M
Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product GW5000-SDT-20
AC Max. Apparent Power 5500 VA
AC Nominal Voltage 400 Volt
AC Operating Frequency 50/60 Hz
AC Output Current 8 Amp
AC Output Power 5000 Watt
Communication Port RS485/Wi-Fi or LAN or 4G (Optional)
Connection Type DC: MC4/AC: Plug and Play
Cooling Method Natural Convection
DC Input Power 7500 Watt
DC Input Voltage 1000 Volt
DC Max. Input Current 16 Amp
DC MPPT Voltage Range 180-850 Volt
DC Nominal Voltage 620 Volt
DC Start-up Voltage 180 Volt
DC Switch Integrated
Depth 147 mm
Efficiency 0.982
European Weighted Efficiency 0.976
IP Rating IP65
Height 433 mm
Max. Operating Altitude 3000 mtr
Number of MPPTs 2
Operating Temperature -30 to 60 deg C
Phase 3 Phase
Power Factor 1 (Adjustable 0.8 Leading-0.8 Lagging)
Relative Humidity 0-100%
Topology Non-Isolated
Total Harmonic Distortion <3%
Width 354 mm
