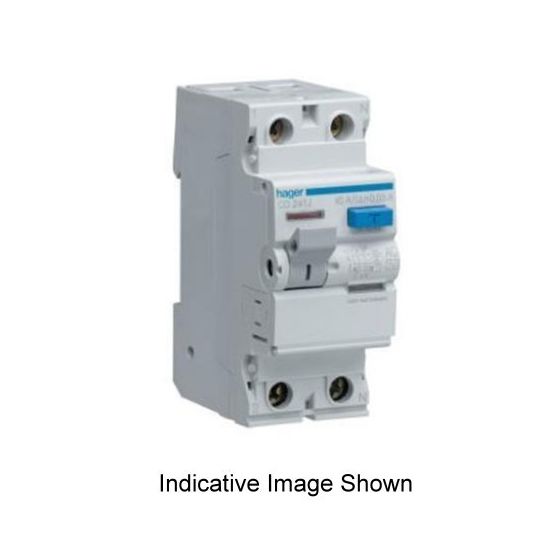

Hager Safety Switch RCCB Type A 2Pole 40A 230V 6kA 30mA 2Module 35mm DIN Rail Mount IP20

Description

Residual Current Circuit Breaker Type A, 230 Volt, 40 Amp, 50 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, 2 Module 35 mm, 2 Pole, Screw Terminal, IP20, DIN Rail Mounting, 2000 Cycles Electrical Life, 4000 Cycles Mechanical Durability, 16 sq-mm Flexible/25 sq-mm Rigid, 2.8 Nm Tightening Torque, 25 to 40 deg C, 83 mm Height, 35 mm Width, 70 mm Depth

Key Specifications

Barcode (EAN-13)	3250611615453
SKU	HAGCDA240T
Brand	Hager
Range Name	onekombo
Product Type	Safety Switches RCCB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	CDA240T
Depth	70 mm
Current	40 Amp
Conductor Size	16 sq-mm Flexible - 25 sq-mm Rigid
Frequency	50 Hz
Electrical Life	2000 Cycles
Height	83 mm
Interrupt Capacity	6 kA
IP Rating	IP20
Mechanical Durability	4000 Cycles
Modules	2 Module 35 mm
Mounting Method	DIN Rail
Number Of Poles	2 Pole
Temperature	25 to 40 deg C
Terminal Type	Screw
Tightening Torque	2.8 Nm
Trip Sensitivity	30 mA
Voltage	230 Volt
Width	35 mm
