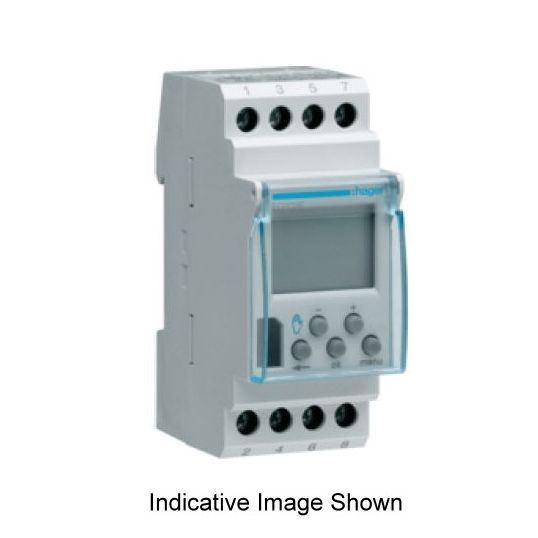

Hager Time Switch Digital 7 Day 1 Channel 230V 16A 2 Module 5yr Reserve 1CO DIN Rail Mount

Description

Time Switch Digital 7 Day, 230 V, 16 Amp Switching Capacity, 6 VA, 50 Hz, 2 Modules, 1 Channels, +/- 1.5 sec/Day Accuracy, Screw, 5 Years Reserve Battery Backup, 1CO, 1-6 mm Flexible, 1.5-10 mm Rigid Terminal Capacity, IP20, DIN Rail,-5 to 45 deg C, 85mm Height x 35mm Width x 64mm Depth

Key Specifications

Barcode (EAN-13)	3250612279968
SKU	HAGEG103E
Brand	Hager
Product Type	Time Switches Digital

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	EG103E-NLA
Battery Backup	5 Years Reserve
Accuracy	+/- 1.5 sec/Day
Connection Type	Screw
Contact Type	1 Changeover
Dimensions	85mm Height x 35mm Width x 64mm Depth
Frequency	50 Hz
IP Rating	IP20
Modules	2 Module
Mounting Method	DIN Rail
Power Rating	6 VA
Number of Channels	1 Channel
Temperature	-5 to 45 deg C
Switching Capacity	16 Amp
Terminal Capacity	1-6 sq-mm Flexible/1.5-10 sq-mm Rigid
Voltage	230 Volt
