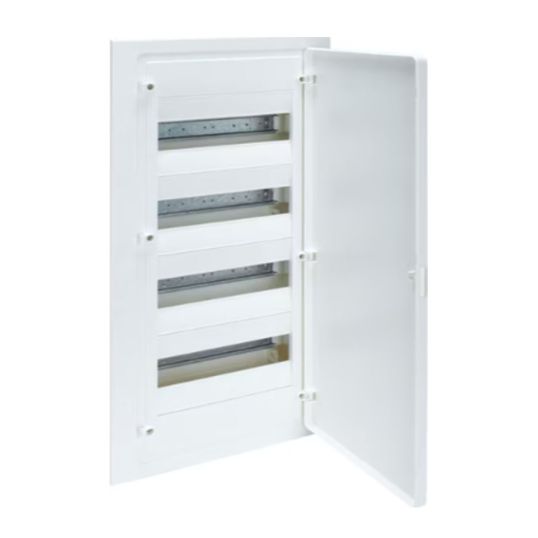

Hager 48 Pole Small Distributor Flush Mount 400 Volt 80 Amp Plastic Opaque Door

Description

Small Distributor, 400 Volt, 80 Amp, 4 Row, 48 Module, IP40, Flush Mounting, For Use With DIN Equipment, Plastic, Pure White, 25 to 40 deg C, 688 mm Height x 352 mm Width x 97.5 mm Depth, Opaque Door

Key Specifications

Barcode (EAN-13)	3250616466296
SKU	HAGVF412PT
Brand	Hager
Range Name	Golf

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flush mount enclosures from 1 to 4 rows, from 4 to 72 modules Opaque or transparent door for devices up to 70 mm installation depth Door opens up to 180 deg and can be fitted on right or left, with optional lock and keys Wall box and cover are symmetrical for removable cable entry slider Cable entries for cable and conduit Earth and neutral terminals Pole fillers Patented marking system in enclosures 36 modules Cable management clips in enclosures 36 modules Transport protection film
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	VF412PT
Colour	White
Dimensions	688 mm Height x 352 mm Width x 97.5 mm Depth
Current	80 Amp
IP Rating	IP40
For Use With	DIN Equipment
Modules	48 Module
Material	Plastic
Number of Rows	4 Row
Please Note	Opaque Door
Mounting Method	Flush
Temperature	25 to 40 deg C
Voltage	400 Volt
