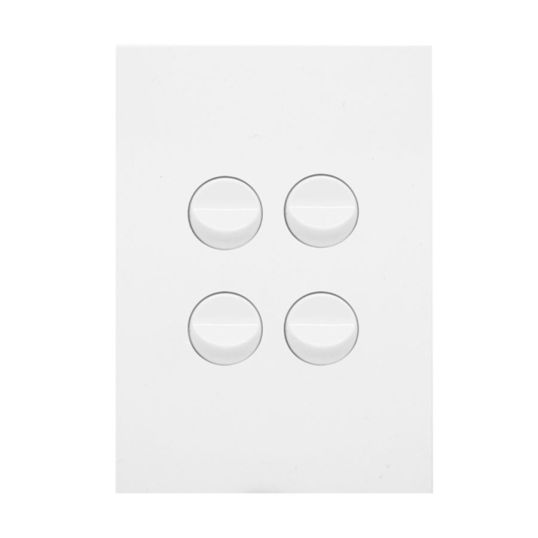

Hager Finesse Switch Plate with Mechanism 250Volt 16Amp 50 Hz 4 Gang White
Loading...
Description
Switch Plate with Mechanism, 250 Volt Switch, 16 Amp, 50 Hz, 4 Gang, 2 Way, Button Actuator, Screw Connection, Loop Terminal, 4 x 1.5 sq-mm Terminal Capacity, IP2X, Flush Mounting, Polycarbonate, White, Matte, 117 mm Height, 77 mm Width
Key Specifications
| Barcode (EAN-13) |
3250617005562
|
|---|---|
| SKU |
HAGWBQSV4-MW
|
| Brand |
Hager
|
| Range Name |
Finesse
|
| Product Type |
Switch Plates
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | WBQSV4-MW |
| Colour | White |
| Actuator Type | Button |
| Connection Type | Screw |
| Current | 16 Amp |
| Finish | Matte |
| Frequency | 50 Hz |
| Height | 117 mm |
| IP Rating | IP2X |
| Material | Polycarbonate |
| Mounting Method | Flush |
| Number Of Gangs | 4 Gang |
| Number Of Ways | 2 |
| Terminal Capacity | 4 x 1.5 sq-mm |
| Terminal Type | Loop |
| Width | 77 mm |
