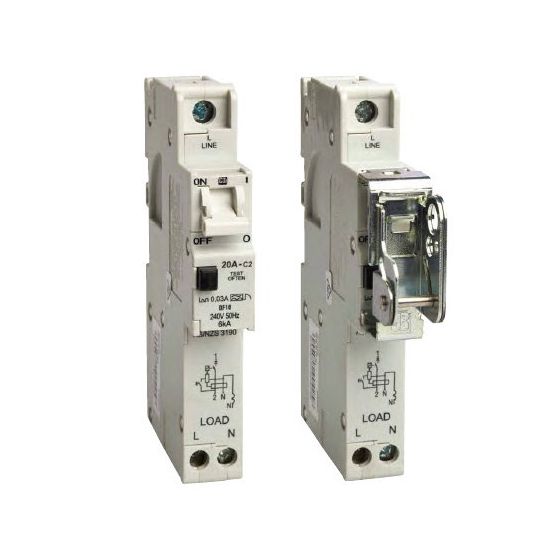

Heinelec Combination RCD Circuit Breaker RCBO 1 Pole+N 10 Amp 110-240V 6 kA 1Module 17.5mm DIN Rail Surface

Description

Combination RCD Circuit Breaker RCBO, 110-240 Volt, 10 Amp, 50 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, 1 + N Pole, 1 Module 17.5 mm, DIN Rail/Surface Mounting, 40 to 85 deg C, 1129 mm Height, 73 mm Width

Key Specifications

SKU	HEIQF10A210
Brand	Heinelec
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	AC branch of earth leakage protection circuit breakers Hydraulic magnetic technology Tripped indication with mid-trip position DIN mount 18 mm pitch MCB providing overload, short circuit and earth leakage protection Available in 1 pole + Neutral combination Available from 6-32 Amp Single pole with unswitched neutral earth leakage protection Padlocking facility Precision tripping characterstics Trip indication with mid trip position
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	QF10A210
Current	10 Amp
Height	1129 mm
Modules	1 Module 17.5 mm
Frequency	50 Hz
Interrupt Capacity	6 kA
Mounting Method	DIN Rail/Surface
Number Of Poles	1 Pole
Temperature	40 to 85 deg C
Trip Sensitivity	30 mA
Voltage	110-240 Volt
Width	73 mm
