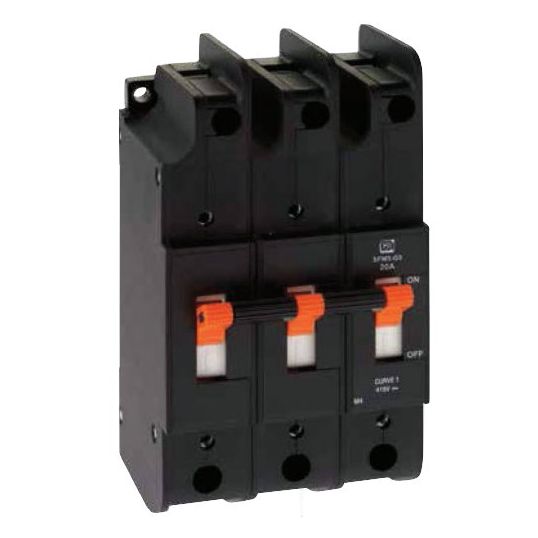

Heinelec Miniature Circuit Breaker 3 Pole 40 Amp 6 kA 3 Module 77.4mm Clip Tray Surface Mount

Description

Miniature Circuit Breaker C Curve, 240 Volt, 40 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 3 Module, 3 Pole, Tunnel Terminal, IP2X, Clip Tray/Surface Mounting, 40 to 85 deg C, 149 mm Height, 77.4 mm Width, 71.8 mm Depth, 3 MOD

Key Specifications

SKU	HEISFM3-G3-40-2
Brand	Heinelec
Range Name	SFM Series
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	AC circuit breaker Hydraulic magnetic technology 100% rating capability, independent of ambient temperature IP2X finger proof line and load box (tunnel) type terminals can accommodate copper cables up to 50 sq-mm Available in various currents and time delays Precision tripping characteristics Reset immediately after over load
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	SFM3-G3-40-2
Current	40 Amp
Depth	71.8 mm
Frequency	50/60 Hz
Height	149 mm
Interrupt Capacity	6 kA
IP Rating	IP2X
Modules	3 Module
Mounting Method	Clip Tray/Surface
Number Of Poles	3 Pole
Please Note	3 MOD
Temperature	40 to 85 deg C
Terminal Type	Tunnel
Voltage	240 Volt
Width	77.4 mm
