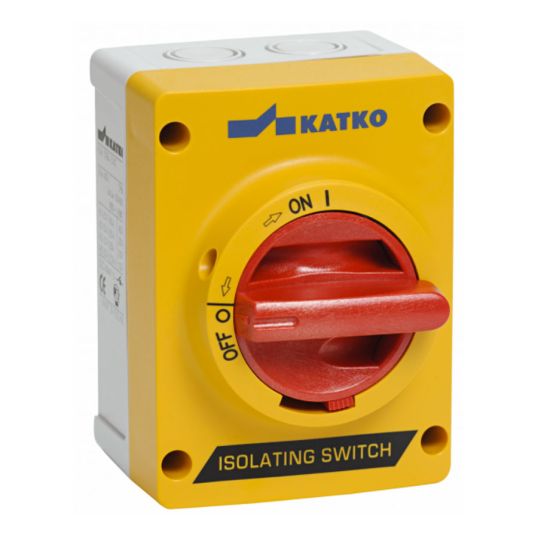

Katko Enclosed Isolator Switch 16A 400/415V 7.5kW 3P Polycarbonate Red/Yellow Handle

$Katko\Katko_KEM316UY-R.jpg$

Description

Enclosed Isolator Switch, 400/415 Volt, 16 Amp, 7.5 kW, 3 Pole, Polycarbonate, Red/Yellow Handle, IP66, Front Operated, Load Break Switch, 1.5-16 mm Terminal Capacity, 130.4 mm Height, 96.4 mm Width, 106 mm Depth

Key Specifications

Barcode (EAN-13)	6419410327739
SKU	KATKEM316UY/R
Brand	Katko
Product Type	Isolating Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	IP66; Enclosure types U2, U3, U4 IP65; Enclosure types MF11, MF03, MF04 Self-extinguishing material Wide operating temperature range Padlockable with 3 locks Door interlock with defeat mechanism Excellent insulating properties Good UV resistance Good resistance against many chemicals Tested according to IEC 60947-3
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	KEM316UY/R-NLA
Colour	Red/Yellow Handle
Current	16 Amp
Depth	106mm
Height	130.4mm
IP Rating	IP66
Material	Polycarbonate
Method of Operation	Operators
Number Of Poles	3 Pole
Terminal Capacity	1.5-16 sq-mm
Voltage	400-415 Volt
Width	96.4mm
