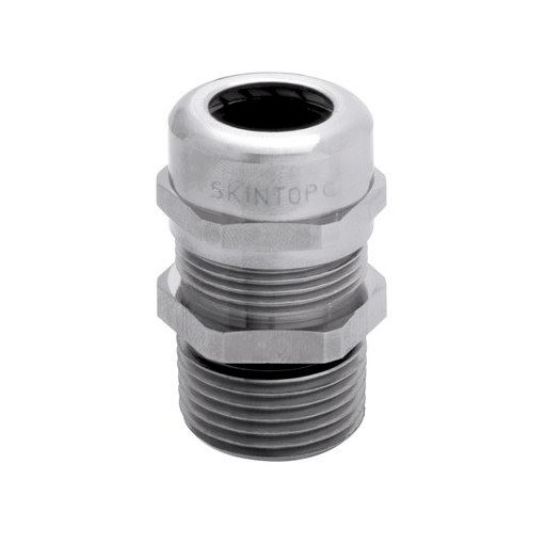

Lapp Kabel Metal Cable Gland Unarmoured General Purpose Extra Long Thread M16x1.5 4.5-10mm Nickel Plated Brass IP69

Description

Cable Gland Metal Unarmoured General Purpose Extra Long Thread, M16 x 1.5 mm, 12 mm Thread Length, 1.5 mm, 4.5 mm Min. Sheath OD, 10 mm Max. Sheath OD, For Use With Unarmoured Cables, IP69, Brass Body, CR Seal, Nickel Plated, -25 to 100 deg C/-40 to 100 deg C, 38 mm Overall Length

Key Specifications

SKU	LAP53112015
Brand	Lapp Kabel
Range Name	Skintop MS-M-XL

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Good chemical resistance Corrosion-resistant Mechanical resistance Optimum strain relief Acid-resistant Temperature resistant
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	53112015
Body Material	Brass
Finish	Nickel Plated
For Use With	Unarmoured Cables
IP Rating	IP69
Max. Sheath OD	10 mm
Overall Length	38 mm
Min. Sheath OD	4.5 mm
Seal Material	CR
Temperature	-25 to 100 deg C/-40 to 100 deg C
Thread Length	12 mm
Thread Pitch	1.5 mm
Thread Size	M16 x 1.5 mm
