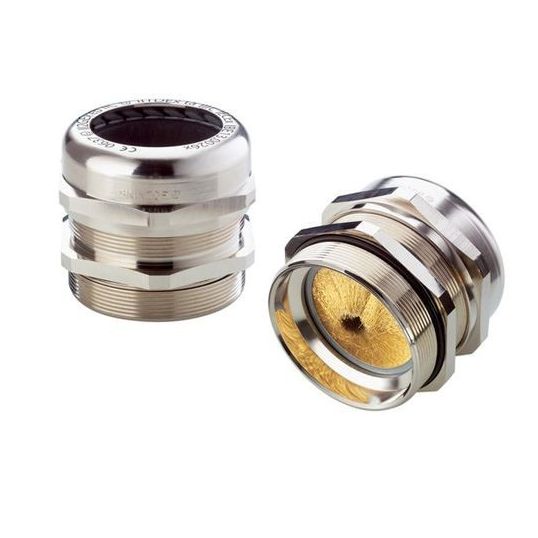

Lapp Kabel Cable Gland EMC VSD Screened Cable M40 x 1.5 19-28mm Wire Brush IP68

Description

Cable Gland, EMC VSD Screened Cable, M40 x 1.5, 9 mm Thread Length, 1.5 mm Pitch, 19 mm Min. Sheath OD, 28 mm Max. Sheath OD, IP68, Special Elastomer Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed), Brass Wire Brush

Key Specifications

SKU	LAP53112678
Brand	Lapp Kabel
Range Name	Skintop MS-M Brush
Product Type	Cable Glands EMC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Faster, easier screen contact Optimum, low-resistance 360 deg screen contact Faster than any other comparable system Uncomplicated and reliable Maximum assembly freedom during adjustment For EMC-compliant earthing of the copper braiding, or for cables with copper shaft sheath, automation systems, high-power drives, frequency converters, conveyor and transport systems Special elastomer O-ring Brass EMC brush
Standard Pack Size	5
UNSPSC Class	39121400
UOM	EA
Vendor Product	53112678
Body Material	Brass
Finish	Nickel Plated
IP Rating	IP68
Max. Sheath OD	28 mm
Min. Sheath OD	19 mm
Please Note	Brass Wire Brush
Seal Material	Special Elastomer
Temperature	-25 to 100 deg C (Dynamic) -40 to 100 deg C (Fixed)
Thread Length	9 mm
Thread Pitch	1.5 mm
Thread Size	M40 x 1.5
