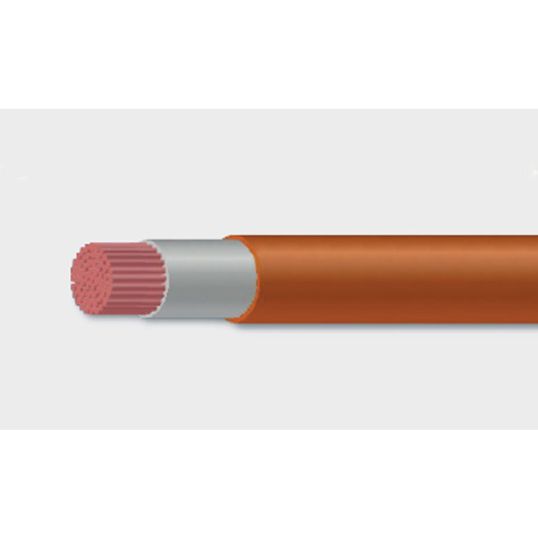

MEC Cables 240mm Orange/Black/Red Circular XLPE Cable

Description

Circular XLPE Cable, 240 mm, Annealed Copper, 0.6-1 kV, 1 Core, 28 mm Overall Diameter, 168 mm Bend Radius, 1.7 mm Insulation Thickness, 1.7 mm Sheath Thickness, DC: 0.0801 Ohm/km Conductor Resistance, X-HF-110 Insulation, Natural Insulation, HFS-110-TP Sheath, Orange/Black/Red Sheath, 90 deg C, AS/NZS 5000.1 AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 IEC 60332-1

Key Specifications

SKU	MCBLS1C2400
Brand	MEC Cables
Product Type	Cables Circular

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Low smoke Zero halogen
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	LS1C2400
Bend Radius	168 mm
Conductor Resistance	DC: 0.0801 Ohm/km
Conductor Size	240 mm
Conductor Type	Annealed Copper
Insulation Colour	Natural
Insulation Material	X-HF-110
Insulation Thickness	1.7 mm
Number of Cores	1 Core
Overall Diameter	28 mm
Sheath Colour	Black/Orange/Red
Sheath Material	HFS-110-TP
Sheath Thickness	1.7 mm
Standards	AS/NZS 5000.1 AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 IEC 60332-1
Temperature	90 deg C
Voltage	0.6-1 kV
