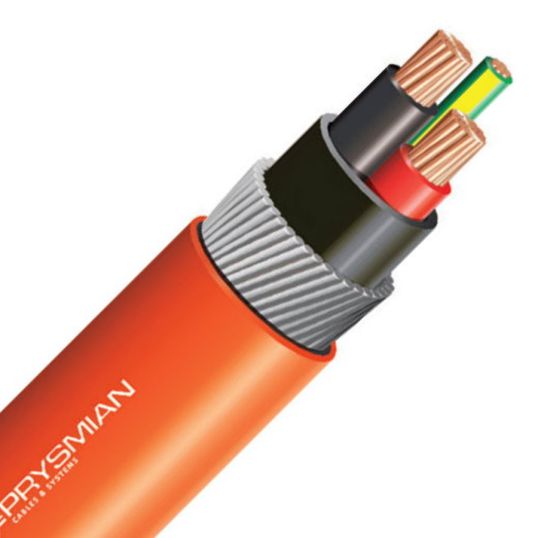

Prysmian 1.5 mm Orange Circular Cable Armoured V-90 PVC/Steel Wire/5V-90 PVC 100mtr


Description

Circular Cable, Armoured, 1.5 mm, Annealed Copper, 0.6-1 kV, 2 Core + Earth, 7/0.5 mm Strands, 1.5 mm Nominal Diameter, 14.5-15.6 mm Overall Diameter, 9.1 mm Bedding Diameter, 10.9-11.6 mm Diameter Over Armour, 1.5 mm Earth Conductor, 100 mtr Length, 190 mm Bend Radius, 0.8 mm Insulation Thickness, DC: 13.6 Ohm/km Conductor Resistance, Steel Wire Armour, Red/Black/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, 75 deg C, AS/NZS 1125 AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	9310835919073
SKU	MMCCEB02PNPMG7/0.50
Brand	Prysmian
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	20199548
Armour Material	Steel Wire
Bedding Diameter	9.1 mm
Bend Radius	190 mm
Conductor Resistance	DC: 13.6 Ohm/km
Conductor Type	Annealed Copper
Conductor Size	1.5 mm
Core Colours	Black/Red/Green/Yellow
Diameter Over Armour	10.9-11.6 mm
Earth Conductor Size	1.5 mm
Insulation Material	V-90 PVC
Insulation Thickness	0.8 mm
Nominal Diameter	1.5 mm
Number of Cores	2 Core + Earth
Overall Diameter	14.5-15.6 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 5000.1
Stranding	7/0.5 mm
Temperature	75 deg C
Voltage	0.6-1 kV
