MSS Fibre Systems External Underground Loose Tube Fibre Optic Cable Multimode OM4 24 Fibre PE/Nylon Blue

chevron-left
loader
Loading...

Description

chevron-down

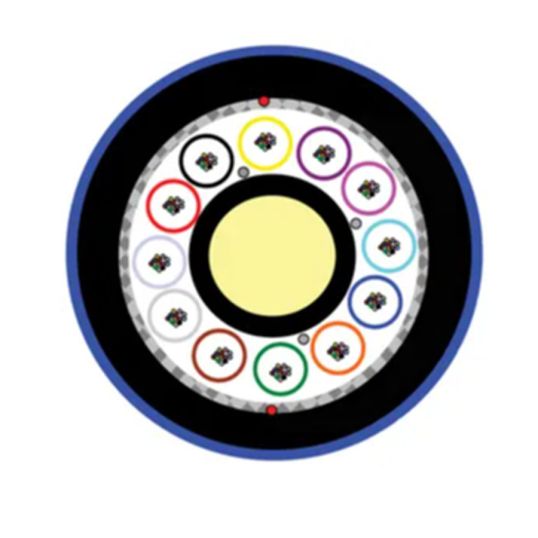

A Termite resistant Loose tube cable featuring a non-metallic strength member, gel filled tubes and a dry block core, for use in both direct bury and conduit/duct applications. The Thixotropic gel filled tubes and water swellable yarns (dry core) prevent water ingress while the non-metallic glass fibre reinforced plastic central strength member maintains excellent tensile strength. This standard loose tube construction features an inner UV resistant Polyethylene (PE) sheath and an outer termite/UV resistant Polyamide Nylon jacket. Other options include Composite (MM + SM), Sacrificial Sheath and CST Armour.

Key Specifications

chevron-down
Barcode (EAN-13)
9318674122890
SKU
MSDCAB-LT-24-MM4
Brand
MSS Fibre Systems

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Blue UV and Insect/Termite resistant Nylon (Polyamide) Jacket Black PE (Polyethylene) UV resistant Inner sheath
  • Polyester based rip cords for easy sheath removal
  • Water blocking tape and swellable yarns prevent ingress into the core
  • Thixotropic gel filled tubes prevent water ingress into the tubes
  • Non-metallic fibre reinforced plastic rod central strength member provides tensile strength
Standard Pack Size 1
UNSPSC Class 43223300
UOM MTR
Vendor Product CAB-LT-24-MM4
Attenuation 2.7 dB/km at 850 Nm - 0.8 dB/km at 1300 Nm
Bend Radius 200 mm Installation/150 mm Long Term
Construction Gel Filled Nylon Jacket
Fibre Core Diameter 50 um
Fibre Count 24
Fibre Mode Multimode
Fibre Type OM4
Number of Fibres 2-72
Outside Diameter 10 mm
Sheath Colour Black/Blue
Sheath Material Inner: Polyethylene/Outer: Polyamide Nylon
Temperature 10 to 70 deg C
Tensile Strength 2 kN
Strength Member Glass Fibre Reinforced Plastic
Tube Filling Thixotropic Gel
Tube Size 2.1 mm
